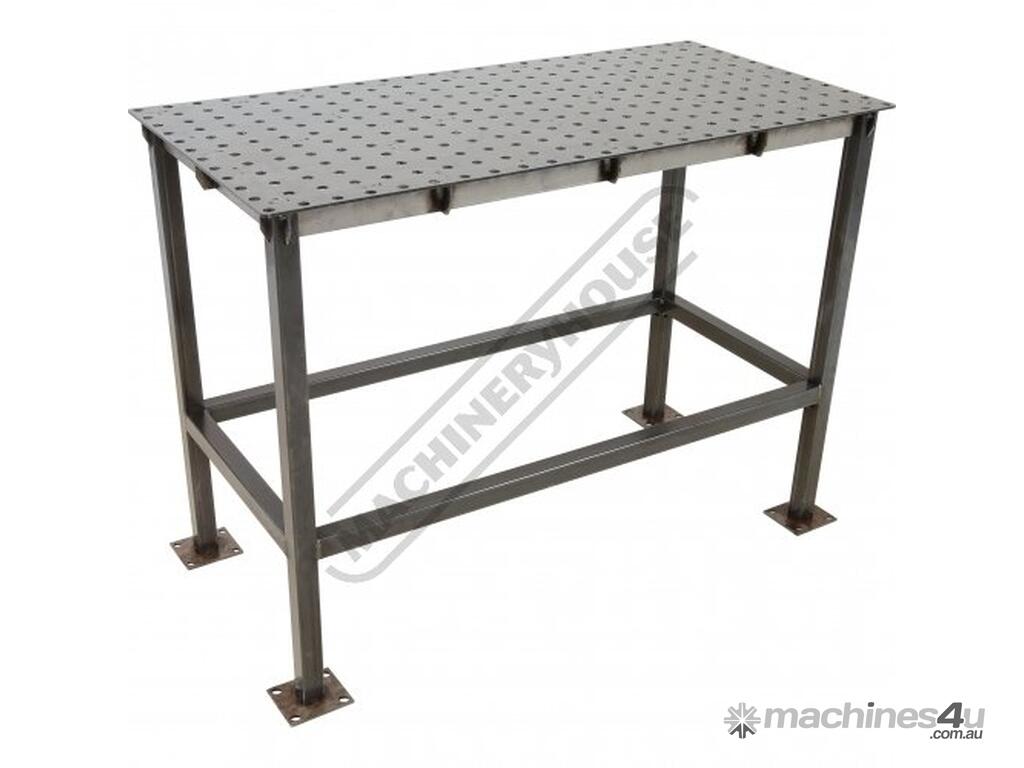

WTL60120-M CertiFlat PRO 1D Welding Table Tab & Slot U-Weld 600 x 1200 x 860mm (LxWxH)
WTL60120-M CertiFlat PRO 1D Welding Table Tab & Slot U-Weld 600 x 1200 x 860mm (LxWxH) : $820 AUD ($902 Inc. GST)
CERTIFLAT WTL60120-M CertiFlat PRO 1D Welding Table Tab & Slot U-Weld 600 x 1200 x 860mm (LxWxH)
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W07802B
CertiFlat’s PRO Series welding table top kits were designed from the ground up, with the welder in mind. They have been in use by dozens of OEM manufacturers across the USA and Canada and are now available in Australia.
Pro Series Tables are built from tough 4.8mm Hot Rolled Pickled & Oiled Steel using state of the art CNC Laser Cutting technology for an exceptional fit-up.
The proprietary Tab & Slot methodology for building stiff and accurate welding fixtures has been proven in real world manufacturing setups for over 15 years.
By following the proper sequence (shown in easy to understand step by step instructions & video) the Internal webbing forces the table flat during assembly and keeps it that way for years of trouble free and accurate welding.
Engineered Tab & Slot stiffening ribs for a guaranteed flat surface
Proprietary Heat-Zoneâ„¢ design to eliminate warping during assembly and welding
All parts are laser cut to a very tight tolerance maintaining very high precision
Ã˜16mm holes with a 50 x 50mm grid pattern
Compatible with Strong Hand Tools FixturePoint clamp systems
Includes long leg kit
Please Note: assembly & welding is required to complete setup
ORDER CODE: W07802B
Type: CertiFlat 1D PRO Table
Leg Frame Type: Includes Legs
Table Top Size (mm): 600 x 1200
Table Height with Stand (mm): 860
Table Side Height (mm): 50
Top Plate Thickness (mm): 4.8
Grid Pattern (mm): 50 x 50
Table Hole Diameter (mm): Ã˜16
Table Slots (mm): ~
Table Load Capacity (kg): ~
Nett Weight (kg): 56
