TU-1503V Opti-Turn Bench Lathe - Mini Ø150 x 300mm Turning Capacity - Ø11mm Spindle Bore Electroni

NSW,QLD,VIC,WA - Delivers Nationally

TU-1503V Opti-Turn Bench Lathe - Mini Ø150 x 300mm Turning Capacity - Ø11mm Spindle Bore Electroni :      $890 AUD ($979 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Optimum
    Model:
    TU-1503V
    Distance between Centres(mm):
    300
    Sellers stock ID:
    L685
    Description

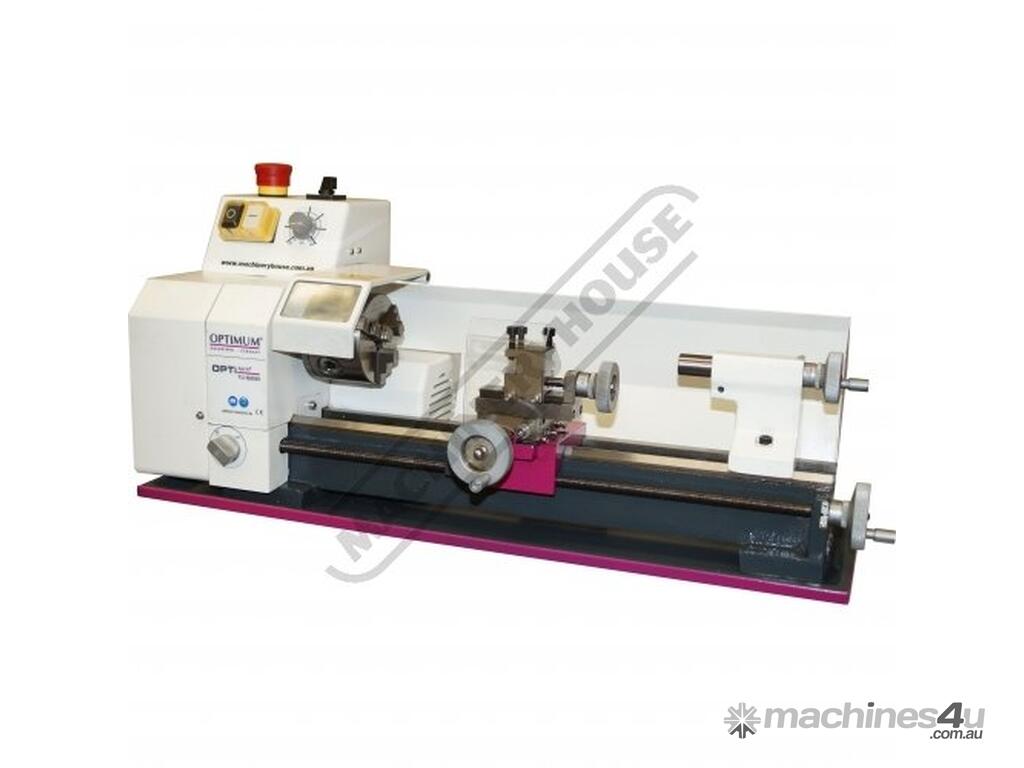

    OPTIMUM TU-1503V Opti-Turn Bench Lathe - Mini Ø150 x 300mm Turning Capacity - Ø11mm Spindle Bore Electronic Variable Speeds 160 ~ 3000rpm
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: L685

    Ideal for the model maker machining miniature parts
    Small in size but packed full of features, this miniature lathe could provide the perfect introduction to those wanting to start metal turning for the first time.

    The machine is small enough to fit into the corner of the workshop and light enough to be truly portable. The construction is predominantly from cast iron and steel and the capacities, 150mm diameter and 300mm between centres, are surprisingly large for a machine of this overall size.

    Features such as the electric variable speed control, manual or powered leadscrew feed and an extensive range of accessories. The lathe comes supplied with 80mm diameter three jaw self-centring chuck, tailstock centre and service tools.

    Features:
    Electronic infinitely variable speed 160-3000rpm
    Ribbed prism bed made of grey cast iron
    Inductively hardened and ground bed guideways
    Spindle nose accuracy 0.015mm
    3 Jaw chuck running accuracy 0.05mm
    Forward & reverse spindle direction switch
    Automatic longitudinal feed
    2 stepped V-belt drive pulley
    Conveniently mounted safety emergency stop switch
    Includes a set of change gears for metric thread cutting
    Cross slide & bed length are designed to fit Optimum DRO scales

    Includes:
    - Change gears for metric thread cutting
    - Chuck guard
    - Toolpost guard
    - Dead Centre
    - 3-jaw chuck with reversible jaws
    - Swarf tray
    - Rear splash guard



    Specifications:
    ORDER CODE: L685
    MODEL: TU-1503V
    Swing Over Bed (mm): 150
    Distance Between Centres (mm): 300
    Spindle Bore (mm): 11
    Swing In Gap (mm): ~
    Swing Over Cross-slide (mm): 82
    Digital Readout System Fitted: Optional
    Quick Change Toolpost Fitted: Optional
    Leadscrew Covers Fitted: ~
    Taper Turning Attachment: ~
    Coolant System: ~
    Tool Height To Suit (mm): 8
    Centre Height (mm): 75
    Spindle Nose Size or Type: Fixed
    Bed Width (mm): 70
    Headstock Spindle Taper (MT): 1
    Tailstock Taper (MT): 1
    Cross Slide Travel (mm): 55
    Compound Slide Travel (mm): 40
    Leadscrew Type: Metric
    Metric Cross Feed (X-Axis) (mm/rev): ~
    Imperial Cross Feed (X-Axis) (inch/rev): ~
    Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 0.1
    Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
    Metric Thread Steps & Pitch (No. / mm): 8 (0.5 - 1.5)
    Imperial Thread Steps & TPI (No. / TPI): ~
    3 Jaw Chuck Diameter (mm): 80
    4 Jaw Chuck Diameter (mm): Optional
    Spindle Steps / Speeds (No. / rpm): Variable (160 - 3000)
    Motor Power (kW / hp): 0.45 / 0.6
    Voltage / Amperage (V / amp): 240 / 10
    Shipping Dimensions (L x W x H) (cm): 72 x 41.5 x 34.5
    Nett Weight (kg): 26
