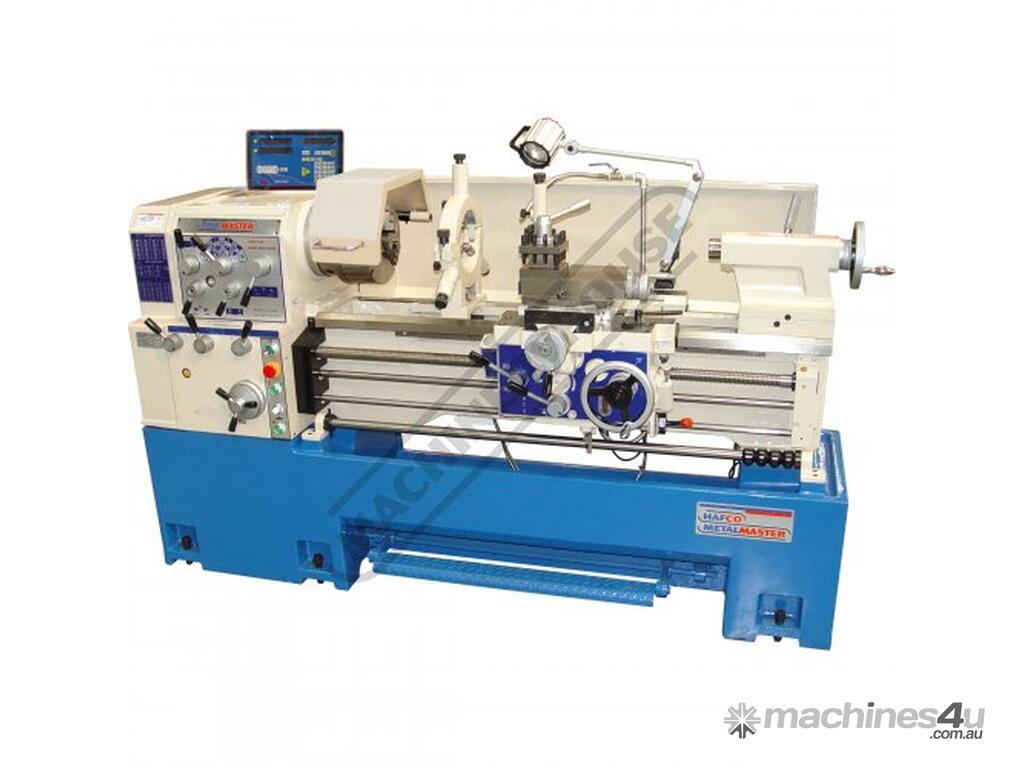

TM-1740G Centre Lathe Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore Includes Digital Readout

NSW,QLD,VIC,WA - Delivers Nationally

TM-1740G Centre Lathe Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore Includes Digital Readout :      $23,500 AUD ($25,850 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Model:
    TM-1740G
    Lathe Features:
    Gap bed
    Distance between Centres(mm):
    1000
    Sellers stock ID:
    L632D
    Description

    HAFCO METALMASTER TM-1740G Centre Lathe Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore Includes Digital Readout System
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: L632D

    The TM-1740G Industrial quality centre lathe is manufactured in Taiwan to a stringent precision engineering high tolerance & superior excellence to cope with any job or task its set out to achieve by the professional machinist, and importantly to deliver many years of valuable & reliable service.

    One of the most forgotten & important feature in a quality lathe is the spindle bore support bearings & generally not mentioned or overlooked because they are hidden well within the headstock of the lathe. Not in this case as the TM-1740G is equipped with 3 x German quality SKF bearings offering excellent spindle support to handle extreme cutting loads to produce accurate work.

    Another reliable feature in this range of precision lathes is the manufacturing process of the bed-ways, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

    This lathe package is complete with the most desirable features required to turn out quality precise parts we all require from a metal turning lathe.

    Features:
    2 axis digital readout system
    Triple SKF German made bearings supporting headstock spindle
    Adjustable taper roller bearings providing spindle accuracy
    Precision 'V'-beds & headstock gears are all hardened & ground
    High quality one-piece Meehanite cast base increases rigidity
    Overload protection on drive motor and coolant system
    Universal enclosed gearbox incorporating metric & imperial thread capabilities
    Inching button incorporated on the control panel for convenient spindle speed selection
    Foot operated spindle brake with safety cut out switch
    300mm Wide induction hardened heavy duty cast iron bed
    Removable gap bed allowing work piece to swing up to 650mm
    Powered longitudinal and cross feeds
    Adjustable 4 position length-stop mechanism for accurate repetitive operation
    Dual calibrated dials incorporating metric & imperial graduations
    Coolant system with flexible hose enabling operator to manipulate flow direction
    Oil sight glass for head stock gearbox and apron
    Low voltage halogen work light
    Lubrication pump on saddle oiling slides
    D1-8 camlock spindle for quick chuck removal
    12 Spindle speeds from 40 - 2000rpm
    Large 80mm spindle bore
    5.5kW / 7.5HP 415V main motor

    Includes:
    - 2 Axis digital readout system
    - 275mm 3-jaw chuck with reverse jaws
    - 320mm 4-jaw chuck
    - 356mm face plate
    - Fixed Steady with roller bearings
    - Travelling steady with roller bearings
    - 4-position knock out feed system
    - Dead centres
    - Thread chasing dial
    - Foot brake
    - Coolant system
    - Work light
    - Rear splash guard
    - Spindle reducing bush
    - Instruction booklet
    -



    Specifications:
    ORDER CODE: L632D
    MODEL: TM-1740G
    Swing Over Bed (mm): 430
    Distance Between Centres (mm): 1000
    Spindle Bore (mm): 80
    Swing In Gap (mm): 650
    Swing Over Cross-slide (mm): 235
    Digital Readout System Fitted: Yes
    Quick Change Toolpost Fitted: Optional
    Leadscrew Covers Fitted: ~
    Taper Turning Attachment: Optional
    Coolant System: Yes
    Tool Height To Suit (mm): 25
    Centre Height (mm): 215
    Spindle Nose Size or Type: D1-8 Camlock
    Bed Width (mm): 300
    Headstock Spindle Taper (MT): 7
    Tailstock Taper (MT): 4
    Cross Slide Travel (mm): 250
    Compound Slide Travel (mm): 125
    Leadscrew Type: Metric
    Metric Cross Feed (X-Axis) (mm/rev): 0.02 - 0.4
    Imperial Cross Feed (X-Axis) (inch/rev): ~
    Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 0.82
    Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
    Metric Thread Steps & Pitch (No. / mm): 17 (0.5 - 7)
    Imperial Thread Steps & TPI (No. / TPI): 39 (4 - 56)
    3 Jaw Chuck Diameter (mm): 275
    4 Jaw Chuck Diameter (mm): 320
    Spindle Steps / Speeds (No. / rpm): 12 (40 - 2000)
    Motor Power (kW / hp): 5.5 / 7.5
    Voltage / Amperage (V / amp): 415
    Shipping Dimensions (L x W x H) (cm): 223 x 106 x 162
    Nett Weight (kg): 1910
