TBRS-25 Manual Tube Bender - Round & Square Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm S

NSW,QLD,VIC,WA - Delivers Nationally

TBRS-25 Manual Tube Bender - Round & Square Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm S :      $350 AUD ($385 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco
    Model:
    TBRS-25
    Sellers stock ID:
    T055
    Description

    HAFCO TBRS-25 Manual Tube Bender - Round & Square Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Square Tube Capacity Includes Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm Round & 19.05 & 25.4mm Square Formers
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: T055

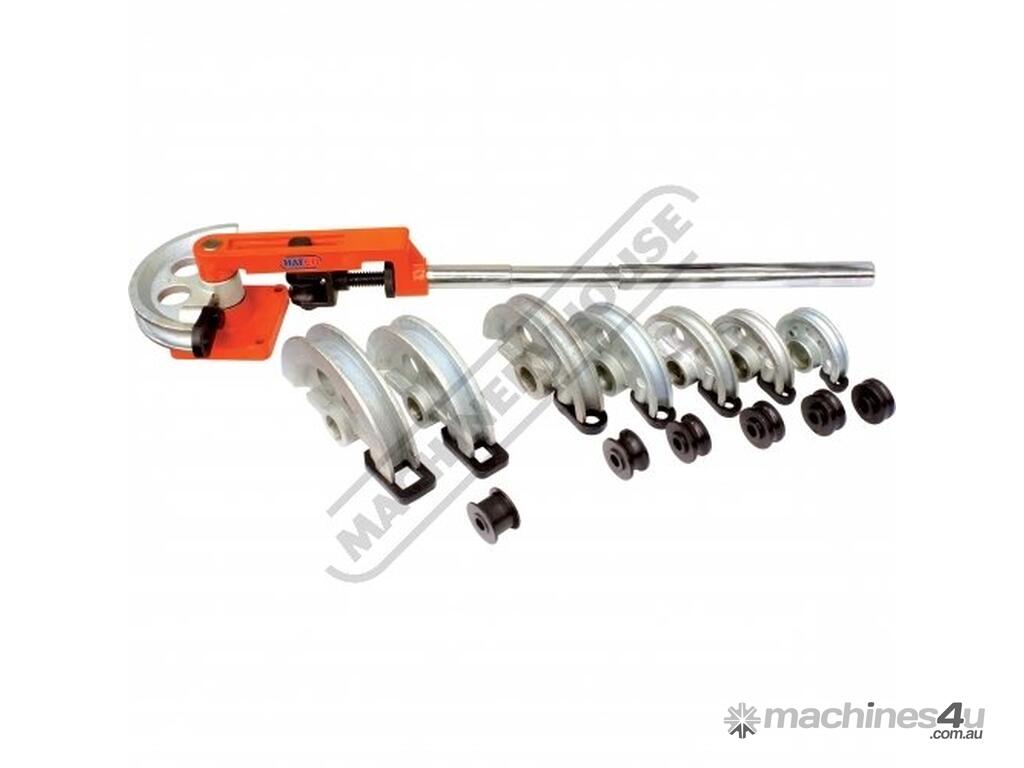

    This Hafco TBRS-25 tube bending kit has everything that you need to make smooth bends in round & Square tubes up to 1.2mm maximum wall thickness. Firstly, mount the cast iron base securely onto your work bench top or clamp it into a bench vice, then you are ready to begin your bend.

    This great package is capable of bending round tubes from Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05 & Ø22.22mm, and square tube from 19.05 & 25.4mm. Everything is all neatly packed into a handy storage carry case for your convenience,

    Features:
    Suitable for 1.2mm wall thickness in mild steel
    Cast Steel Round formers included: Ø9.52 Ø12.7 Ø14.29 Ø15.87 Ø19.05 Ø22.22mm
    Cast Steel Square formers included: 19.05 & 25.4mm

    Includes:
    - Cast Steel Round Tube Formers:
    - D = Ø9.52mm OD - R = 47.5mm Centreline radius
    - D = Ø12.7mm OD - R = 57.5mm Centreline radius
    - D = Ø14.29mm OD - R = 67.5mm Centreline radius
    - D = Ø15.87mm OD - R = 77.25mm Centreline radius
    - D = Ø19.05mm OD - R = 88.25mm Centreline radius
    - D = Ø22.22mm OD - R = 107.25mm Centreline radius
    -
    - Cast Steel Square Tube Formers:
    - H = Ø19.05mm OD - L = 85mm Internal radius
    - H = Ø25.4mm OD - L = 92.5mm Internal radius



    Specifications:
    ORDER CODE: T055
    MODEL: TBRS-25
    Material (Type): Tube
    Material Section (Type): Round & Square
    Machine (Type): Manual
    Hydraulic Jack Size (Tonne): ~
    Round Pipe Range (NB) - Mild Steel (inch / mm): ~
    Round Tube Range (OD) - Mild Steel (inch / mm): Ø9.52 - Ø22.22
    Square Tube Range (inch / mm): 19.05 & 25.4
    Tube Wall Thickness - Mild Steel (inch / mm): 1.2
    Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
    Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
    Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
    Solid Rod - Mild Steel (inch / mm): ~
    Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
    Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
    Bend Speed - Maximum (Deg / Sec): ~
    Bend Direction: ~
    Centre Line Radius - Maximum (CLR) (inch / mm): ~
    Centre Line Radius - Minimum (CLR) (inch / mm): ~
    Tube Formers Included (inch / mm): 9.52, 12.7, 14.29 Round
    Tube Formers Included (inch / mm): 15.87, 19.05, 22.22 Round
    Tube Formers Included (inch / mm): 19.05 & 25.4 Square
    Pipe Formers Included (inch / mm): ~
    Pipe Formers Included (inch / mm): ~
    Spigot Size on Ram (inch / mm): ~
    Angle Capacity (deg): 0 - 180º
    Hydraulic Pressure - Maximum (psi): ~
    Motor Power (kW / hp): ~
    Voltage / Amperage (V / amp): ~
    Shipping Dimensions (mm): 620 x 350 x 160
    Nett Weight (kg): 28


    To Purchase Online Please Visit The Machineryhouse Website & Search For 'T055'
