T65050 BuildPro Ball Lock Bolt Adjustable 22 - 32mm Capacity

NSW,QLD,VIC,WA - Delivers Nationally

T65050 BuildPro Ball Lock Bolt Adjustable 22 - 32mm Capacity :      $40 AUD ($44 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    BUILDPRO
    Model:
    T65050
    Sellers stock ID:
    W08048
    Description

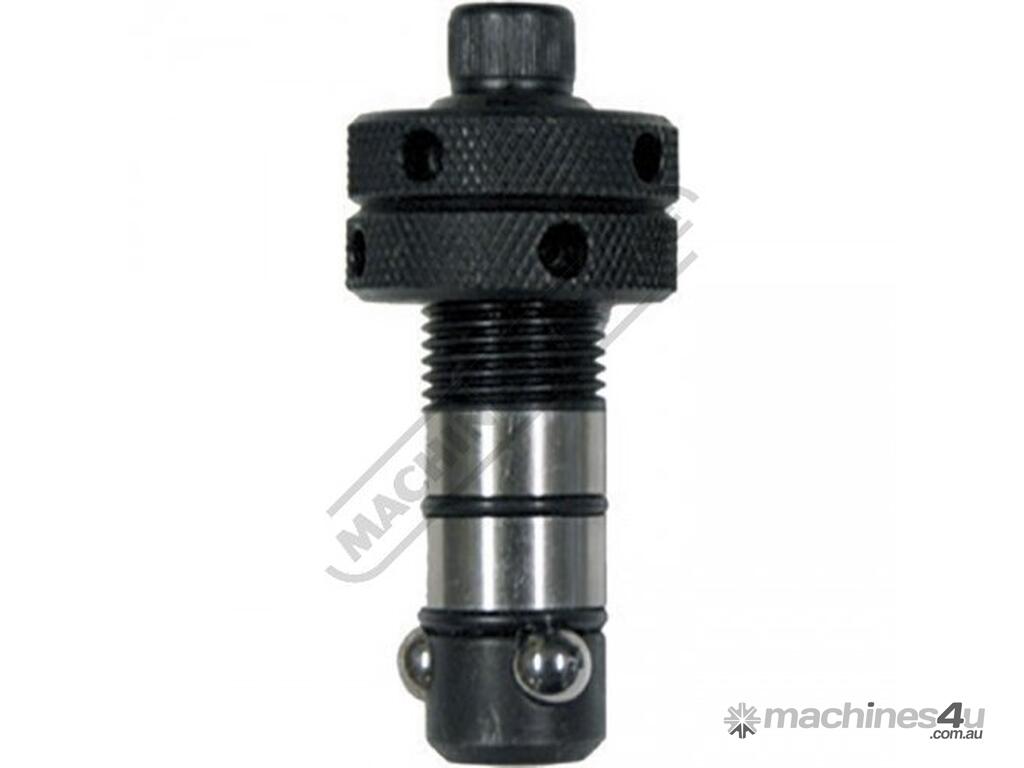

    BUILDPRO T65050 BuildPro Ball Lock Bolt Adjustable 22 - 32mm Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: W08048

    An essential component in Modular Fixturing!

    Ball Lock Bolts are a time-saving, efficient, and handy method of fastening fixture elements to the BuildPro® Tabletop, especially in tight spaces, and hard-to-reach areas of the tabletop. The quick-setting Ball Lock Bolts provide accurate locating and clamping at the same time.

    Insert the Ball Lock Bolt over the fixturing element to be mounted on the tabletop. Turn the knurled head with your hands, for initial positioning. The Ball Lock Bolt system consists of three locking steel balls in the bolt shank that move outward to lock against the bottom chamfer of the table plate, pulling the fixture components securely downward and tightening them in place.

    Once all the Bolts are positioned as required, tighten the socket head screw top of the bolts with a hex wrench. Ball Lock Bolts also release quickly, from the Bolt top, with a turn of your hex wrench. The automatic, and quick-locking feature of the Ball Lock Bolts translates into savings in time and effort.

    - Ball Lock Bolts are an essential component in modular fixturing.
    - When engaged (tightened) three steel locking balls move outward to lock underneath the table, securely attaching fixturing elements to the table with downward pressure.
    - Use Ball Lock Bolts to fasten elements to the tabletop, or to Economy Clamping Squares, or Right Angle Brackets.


    The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

    All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

    Features:
    Adjustable 22 - 32mm Capacity
    6mm Hex Wrench Size

    Includes:
    - 1 x T65050 Ball Lock Bolt



    Specifications:
    ORDER CODE: W08048
    MODEL: T65050
    Type: BuildPro - Adjustable
    Type: Ball Lock Bolt
    Type: ~
    Table Height with Stand (mm): ~
    Suits Table Size: ~
    Material Finish: ~
    Clamping Capacity: 22-32mm
    Locking Handle - Pivot Movement: ~
    Clamp Bar - Pivot Movement: ~
    Plunger Travel (mm): ~
    Throat Depth (mm): ~
    Opening (mm): ~
    Size: ~
    Size: ~
    Quantity Per Pack (No.): 1
    Thread: ~
    Number of Holes (No.): ~
    Slot Length (mm): ~
    Magnet Clamp Angle (deg): ~
    Pull Force (kg): ~
    Clamping Force (kg): ~
    Suits: ~
    Suits: ~
    Suits: ~
    Over all Length: ~
    Nett Weight (kg): 0.10
