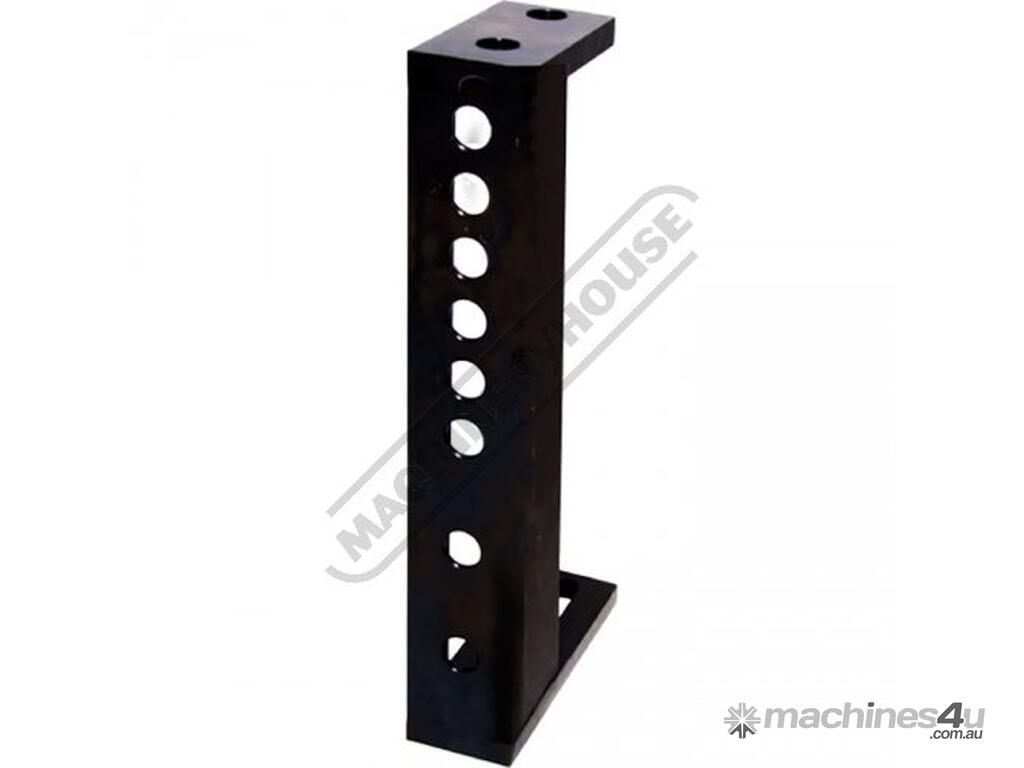

T60215 BuildPro Economy Stop & Clamping Square 50 x 138 x 300mm

NSW,QLD,VIC,WA - Delivers Nationally

T60215 BuildPro Economy Stop & Clamping Square 50 x 138 x 300mm :      $150 AUD ($165 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    BUILDPRO
    Model:
    T60215
    Sellers stock ID:
    W08102
    Description

    BUILDPRO T60215 BuildPro Economy Stop & Clamping Square 50 x 138 x 300mm
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: W08102

    Three sided Stops and Clamping Squares feature fully machined square surfaces for a variety of fit-up applications. Insert Table Mount C-Clamps, or Inserta Clamps into any of the CNC machined 16 mm holes for horizontal or vertical clamping at any height. Use the squares to brace tall workpieces. Insert Magnetic Plugs into any of the holes to hold sheet metal in a vertical position. The lower base features a slotted hole for adjustable mounting. Clamping Squares can be stacked for taller applications. Use with M12 Shoulder Screw Part Nos. T931605 - T931612.

    - Stack Economy Stops as needed to match the height of tall workpieces or fixtures.
    - Add modular fixturing components, such as the Right Angle Brackets, and V-Blocks, to hold stock vertically, or horizontally, at varying heights.
    - Economy Stops are the basic building blocks of any fixture. The inside channel, and the holes and slots provide unlimited versatility in clamping, locating, and positioning.
    - Economy Stops are used as the "framework" in this fixture with varying heights, angles and stock shapes.


    The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

    All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

    Specifications:
    ORDER CODE: W08102
    MODEL: T60215
    Type: BuildPro
    Type: Eco. Stop & Clamp Square
    Type: ~
    Table Height with Stand (mm): ~
    Suits Table Size: ~
    Material Finish: ~
    Clamping Capacity: ~
    Locking Handle - Pivot Movement: ~
    Clamp Bar - Pivot Movement: ~
    Plunger Travel (mm): ~
    Throat Depth (mm): ~
    Opening (mm): ~
    Size: 50 x 138 x 300mm
    Size: ~
    Quantity Per Pack (No.): ~
    Thread: ~
    Number of Holes (No.): ~
    Slot Length (mm): ~
    Magnet Clamp Angle (deg): ~
    Pull Force (kg): ~
    Clamping Force (kg): ~
    Suits: ~
    Suits: ~
    Suits: ~
    Over all Length: ~
    Nett Weight (kg): 2.0
