T-13S Bench Mount Thicknesser - Helical Head Package Deal 330 x 152mm (W x H) Material Capacity Pat
T-13S Bench Mount Thicknesser - Helical Head Package Deal 330 x 152mm (W x H) Material Capacity Pat : $900 AUD ($990 Inc. GST)

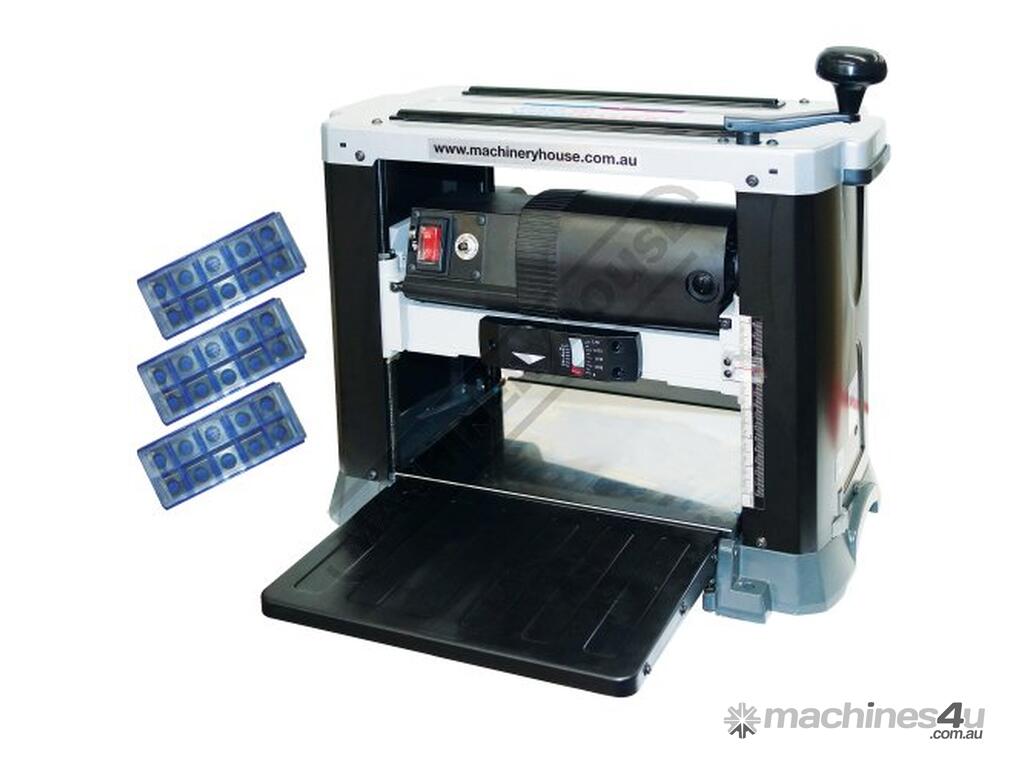

HAFCO WOODMASTER T-13S Bench Mount Thicknesser - Helical Head Package Deal 330 x 152mm (W x H) Material Capacity Patented Helical Cutter Head & 30 Tungsten Inserts
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K125
This machine differs from the traditional design of thicknessers because of the helical cutter head that's now standard on this T-13S model. The important advantage of a Helical cutter head is its spiral shearing action with the workpiece. This translates into a much smoother cut with less chipping and tear out of the workpiece, as well as significantly much quieter operation compared to the very loud chopping effect produced by a traditional HSS blade cutter-head.
The T-13S is equipped with a helical cutter head that includes 26 HSS inserts which are easily indexed or replaced, just simply use the tool screw key that's provided to unscrew the individual insert to be replaced as there is no fiddly height setting to be carried out. The thickness cutter height is adjusted by a very precise control lever positioned conveniently on top of the machine and is used in conjunction with the measurement scale on the front face for quick easy reference to the timber thickness.
There are two other aids to controlling the timber cut thickness on this model; one is a gauge on the front of cutter casting which indicates the depth of cut being taken. The other being a depth stop dial mounted on the lower side of machine with pre-set finish cut heights at 1/8", 1/4", 3/8", 1/2" thickness.
The T-13S is a well built and substantial machine with plenty of power and some useful additional features which will appeal to the more serious user.
Ideal portable machine
1.8kW / 2.4hp 240V motor
330mm x 152mm timber capacity
Helical cutter head with HSS inserts
Pre-set depth stop with 4 settings - 1/8" 1/4" 3/8" 1/2"
Cut thickness indicator
Power timber feed rollers
Safety NVR switch
4 post design
Anti-Kick back fingers
Includes 100/63mm dust chute
A dust collector is required with this thicknesser
- 3 x Tungsten inserts - ( 10 Inserts Per Pack) (W817)
ORDER CODE: K125
Material Width Capacity (mm): 330
Material Height Capacity (mm): 152
Minimum Material Length (mm): 178
Maximum Depth of Cut (mm): 1.5mm @ 330mm Wide
Maximum Depth of Cut (mm): 3.3mm @ 152mm Wide
Cutter Type: HSS Inserts - Spiral
Quantity of Cutters (No. x Type): 26 x Inserts
Cutter Block Diameter (mm): 50.8
Cutter Block Speed (rpm): 10000
Quantity of Spirals (No.): ~
Length of Table (mm): 250
Length of Table with Extensions/Rollers (mm): 720
Feed Speed (m/min): 7
Dust Outlet Diameter (mm): 100/63
Motor Power (kW / hp): 1.8 / 2.4
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 550 x 720 x 485
Floor Space With Option Stand (W x D x H) (mm): 570 x 720 x 1255
Shipping Dimensions (L x W x H): 590 x 400 x 470
Nett Weight: 30
