Swiftcut PRO 2500WT CNC Plasma Cutting Table 2500 x 1250mm Table, Water Tray System, Hypertherm Powe

NSW,QLD,VIC,WA - Delivers Nationally

Swiftcut PRO 2500WT CNC Plasma Cutting Table 2500 x 1250mm Table, Water Tray System, Hypertherm Powe :      $37,650 AUD ($41,415 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    SWIFTCUT
    Sellers stock ID:
    P9023
    Description

    SWIFTCUT Swiftcut PRO 2500WT CNC Plasma Cutting Table 2500 x 1250mm Table, Water Tray System, Hypertherm Powermax 105 Cuts up to 22mm Mild Steel Plate
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: P9023

    Cutting area – 2500 x 1250mm

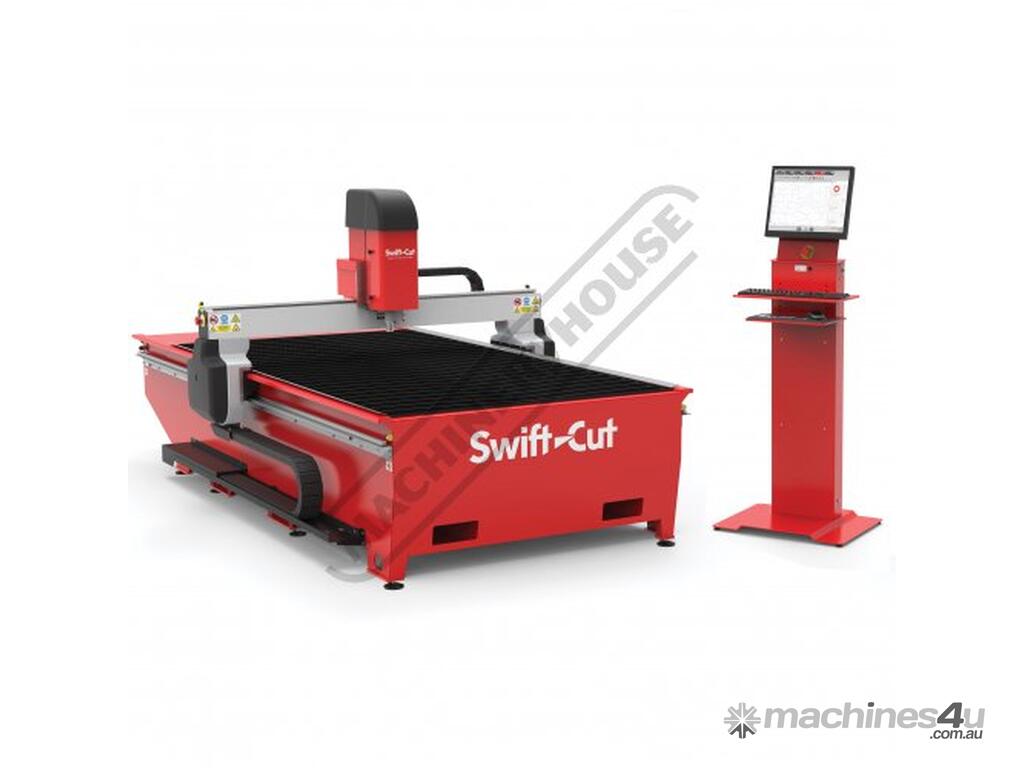

    With a 2500 x 1250mm cutting area, the Swift-Cut PRO 2500 is a feature packed plasma cutting table with the ability and power to cut for as long as required. With a robust steel fabricated, fully welded frame and free standing operators console, making it ideal for workshops, metal fabricators, educational establishments, designers and artists.

    With gantry parking to allow a full sheet to be loaded overhead and a dropped rail for ease of loading, not to mention the simple on-going maintenance, the Swift-Cut PRO 2500 really is the answer to all your cutting needs.

    Our supreme build quality and unique to Swift-Cut operating software allows you to:
    • Cut all metals: stainless and mild steel, aluminium, copper, brass, zinc etc.
    • Cut thicknesses from 0.5mm to 25mm (Depending on Plasma selected)
    • Deliver excellent cut quality


    SOFTWARE: Standard Version

    • Auto Arc voltage capture and regulation to automatically adjust the cut settings to suit varied material characteristics
    • Program recovery function automates starting part way through a program
    • Sheet Trim function to easily trim off excess skeleton
    • G code browser & editor for the novice operator
    • G code favourites – user customised
    • DXF, DWG & JPEG photo import function
    • 3D part Viewer
    • Advanced importer with ability to re-export and save the filtered DXF
    • 5 user assigned reference points for jigs and fixtures
    • Sheet rotation function
    • Automatic lead in / out of cut paths
    • Dry run capability for testing prior to cutting
    • Parametric shapes library with over 80 shapes
    • Automatic cutting consumable recommendations based on material and thickness
    • Manual nesting of parts
    • Team viewer software for remote support


    SOFTWARE: Advanced Version (Optional Extra)

    • All of the Standard version features
    • Multiple simultaneous DXF import
    • Automatic part in part nesting for best sheet utilisation

    Features:
    Fully fabricated and welded steel frame
    Water tray for efficient control of sparks and fumes
    Removable stainless steel splash guards for side rail protection
    Dropped rails for ease of loading full sheets
    Gantry parking to allow full sheet to be loaded overhead
    Heavy duty steel construction with durable paint finish
    Linear guideways for fast accurate motion
    High speed axis motors with closed loop feedback (encoder) for accuracy and reliability
    Dual drive Y-axis
    Rack and pinion drive system
    Breakaway head eliminates damage to torch and improves safety
    Laser guide for easy sheet positioning
    Cut metal up to 25mm thick depending on the Hypertherm Powermax unit selected
    Soft sense Digital Torch-Height Control (DTHC) Quick response for improved cut quantity and improved torch consumable life. This unique touch sensing is so soft and accurate even the thinnest sheet metal will not deflect while sensing.
    Dynamic Cut Control (DCC) is available on all Swiftcut PRO machines This feature enables Software control of cutting amps and air pressure Error messages air pressures and critical data from the plasma unit is displayed on Swiftcut control screen for operator convenience On the fly arc voltage air pressure and cutting speed control ensures the highest quality cut at all times. INDUSTRY 1st UNIQUE TO SWIFT-CUT


    OPERATORS PANEL:

    Free-Standing Operators Console
    LCD TOUCHSCREEN control monitor
    Built in controller with dual CPU
    Wireless keyboard and mouse
    E-Stop safety button
    External USB port for transfer of files
    Easy access for maintenance


    Specifications:
    ORDER CODE: P9023
    MODEL: Swift-Cut 2500WT
    Cutting Table Capacity (mm): 2500 x 1250
    Dynamic Cut Control (DCC): ~
    Thickness Cutting Capacity - Mild Steel (mm): 22
    Plasma Cutting Unit: Hypertherm Powermax 105
    Current Output (amp): 30 - 105
    Duty Cycle (Typical): 80% @ 105A
    Duty Cycle (Typical): 100% @ 94A
    Fume Management (Type): Water Tray System
    Fume Management (Type): ~
    Cutting Gas (Type): Air or Nitrogen
    Plasma Unit Input Voltage (V): 415V with Neutral
    Plasma Unit Input Amperage (amp): 28
    Shipping Dimensions (L x W x H) (cm): 317 x 214 x 150
    Nett Weight (kg): 1000
