RDB-480 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø4" NB Pipe Capacity, Ø19.05 - Ø127mm R

NSW,QLD,VIC,WA - Delivers Nationally

RDB-480 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø4" NB Pipe Capacity, Ø19.05 - Ø127mm R :      Ask for Price

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    BAILEIGH
    Sellers stock ID:
    B8100
    Description

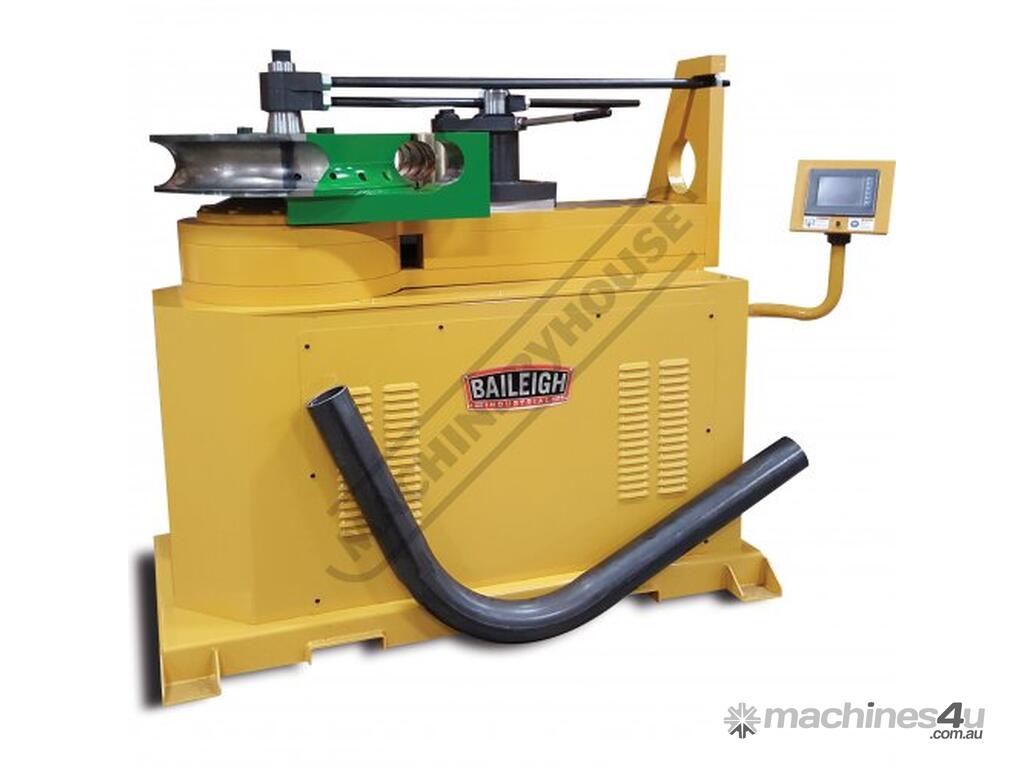

    BAILEIGH RDB-480 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø4" NB Pipe Capacity, Ø19.05 - Ø127mm Round Tube Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B8100

    This programmable pipe bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-480 pipe bender for sale will revolutionize the efficiency of your fabrication shop.

    Features:
    Why choose Baileigh’s RDB-480 Tube Bender over competing machines?
    Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
    Reduces delays with extremely fast automatic bending.
    You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-480.
    Accommodates a wide range of tooling available from Baileigh to suit almost any application.
    Runs on 415 volt three-phase power
    Tackles heavy-duty materials bending up to 127mm tubing and 4" NB (11/32" schedule 80) pipe
    Rotary draw bender smoothly executes 180° bends in just 20 seconds and can complete up to 360° bends
    Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory
    Easy-to-use touchscreen or handy foot pedal can both operate the bender when not in manual mode
    2-piece die mount loosens to release bent tubing without a hassle
    Covered by a 1-year parts warranty and lifetime technical support


    Specifications:
    ORDER CODE: B8100
    MODEL: RDB-480
    Material (Type): Pipe & Tube
    Material Section (Type): Round, Square & Rod
    Machine (Type): Electric Hydraulic - Rotary Draw
    Hydraulic Jack Size (Tonne): ~
    Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø4"
    Round Tube Range (OD) - Mild Steel (inch / mm): Ø19.05 - Ø127
    Square Tube Range (inch / mm): 12.7 - 50.8
    Tube Wall Thickness - Mild Steel (inch / mm): ~
    Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø4" (Schedule 80)
    Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
    Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø127 x 2.11
    Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
    Solid Rod - Mild Steel (inch / mm): ~
    Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
    Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
    Bend Speed - Maximum (Deg / Sec): 180° / 25
    Bend Direction: ~
    Centre Line Radius - Maximum (CLR) (inch / mm): 28" / 711.2mm
    Centre Line Radius - Minimum (CLR) (inch / mm): 6" / 152.4mm
    Tube Formers Included (inch / mm): ~
    Tube Formers Included (inch / mm): ~
    Tube Formers Included (inch / mm): ~
    Pipe Formers Included (inch / mm): ~
    Pipe Formers Included (inch / mm): ~
    Spigot Size on Ram (inch / mm): ~
    Angle Capacity (deg): 190º
    Hydraulic Pressure - Maximum (psi): ~
    Motor Power (kW / hp): 7.5 / 10
    Voltage / Amperage (V / amp): 415
    Shipping Dimensions (mm): 1524 x 1118 x 1730
    Nett Weight (kg): 2730
