RDB-350-TS Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2-1/2" NB Pipe Capacity, Ø19.05 - Ø

NSW,QLD,VIC,WA - Delivers Nationally

RDB-350-TS Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2-1/2" NB Pipe Capacity, Ø19.05 - Ø :      $31,500 AUD ($34,650 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    BAILEIGH
    Sellers stock ID:
    B8095
    Description

    BAILEIGH RDB-350-TS Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2-1/2" NB Pipe Capacity, Ø19.05 - Ø76.2mm Round Tube Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B8095

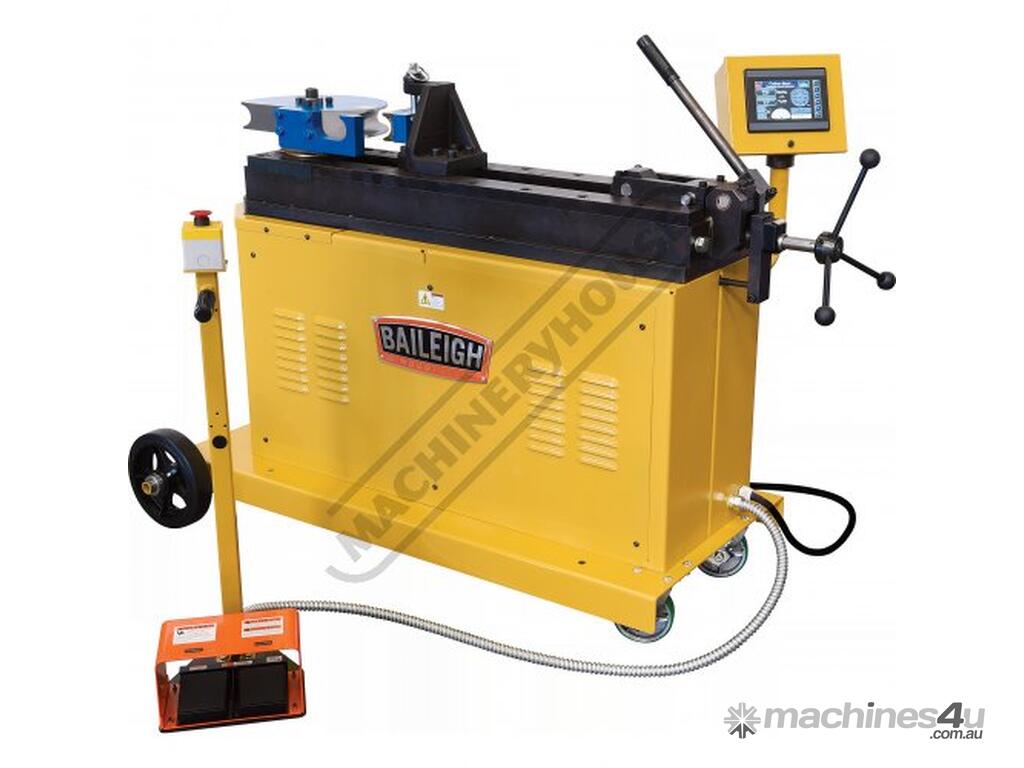

    NOTE: Image shown with Optional Tooling.

    This tubing bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS industrial tubing bender bends 180° in 16 seconds. And its quick-release die system speeds up production.

    Features:
    Proudly engineered and made in the USA
    Capacity of Ø2-1/2" NB (13/64" schedule 40) pipe and Ø76.2mm OD tube with 4.75mm wall thickness
    24" (609.6mm) centre line radius maximum
    Bends to 360° in one shot both left and right
    You can program the desired angle material springback and bend speed for easy repeatability
    Programmer can also keep track of rotational orientation
    Touchscreen controller designed for user-friendly programming
    320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
    Internal memory can store up to 170 programs of 10 bends per program
    Also accepts micro SD memory card to store programs
    Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs
    Like all Baileigh tubing benders the RDB-350-TS is compatible with our standard drop-on tooling. We can also make custom tooling for your application
    Accepts a rotary positioning table available from in several lengths to achieve accurate bends on varying planes

    Includes:
    - Foot pedal control with forward & reverse



    Specifications:
    ORDER CODE: B8095
    MODEL: RDB-350-TS
    Material (Type): Pipe & Tube
    Material Section (Type): Round, Square & Rod
    Machine (Type): Electric Hydraulic - Rotary Draw
    Hydraulic Jack Size (Tonne): ~
    Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø2-1/2"
    Round Tube Range (OD) - Mild Steel (inch / mm): Ø19.05 - Ø76.2
    Square Tube Range (inch / mm): 12.7 - 50.8
    Tube Wall Thickness - Mild Steel (inch / mm): ~
    Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2-1/2" (Schedule 40)
    Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): v3" (Schedule 40)
    Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø2" (Schedule 40)
    Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): v76.2 x 4.75
    Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø88.9 x 6.35
    Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
    Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø76.2 x 3.17
    Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø63.5 x 3.17
    Solid Rod - Mild Steel (inch / mm): Ø38.1
    Square Tube x Wall Capacity - Mild Steel (inch / mm): 76.2 x 3.17
    Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
    Bend Speed - Maximum (Deg / Sec): 180° / 16
    Bend Direction: ~
    Centre Line Radius - Maximum (CLR) (inch / mm): 24" / 609.6mm
    Centre Line Radius - Minimum (CLR) (inch / mm): 1/2" / 12.7mm
    Tube Formers Included (inch / mm): ~
    Tube Formers Included (inch / mm): ~
    Tube Formers Included (inch / mm): ~
    Pipe Formers Included (inch / mm): ~
    Pipe Formers Included (inch / mm): ~
    Spigot Size on Ram (inch / mm): ~
    Angle Capacity (deg): 180º (*360º)
    Hydraulic Pressure - Maximum (psi): ~
    Motor Power (kW / hp): ~
    Voltage / Amperage (V / amp): 415
    Shipping Dimensions (mm): 1753 x 813 x 1168
    Nett Weight (kg): 681
