PM-35XT Punching Machine 35 Tonne

NSW,QLD,VIC,WA - Delivers Nationally

PM-35XT Punching Machine 35 Tonne :      $13,250 AUD ($14,575 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Sunrise
    Model:
    PM-35XT
    Sellers stock ID:
    P192
    Description

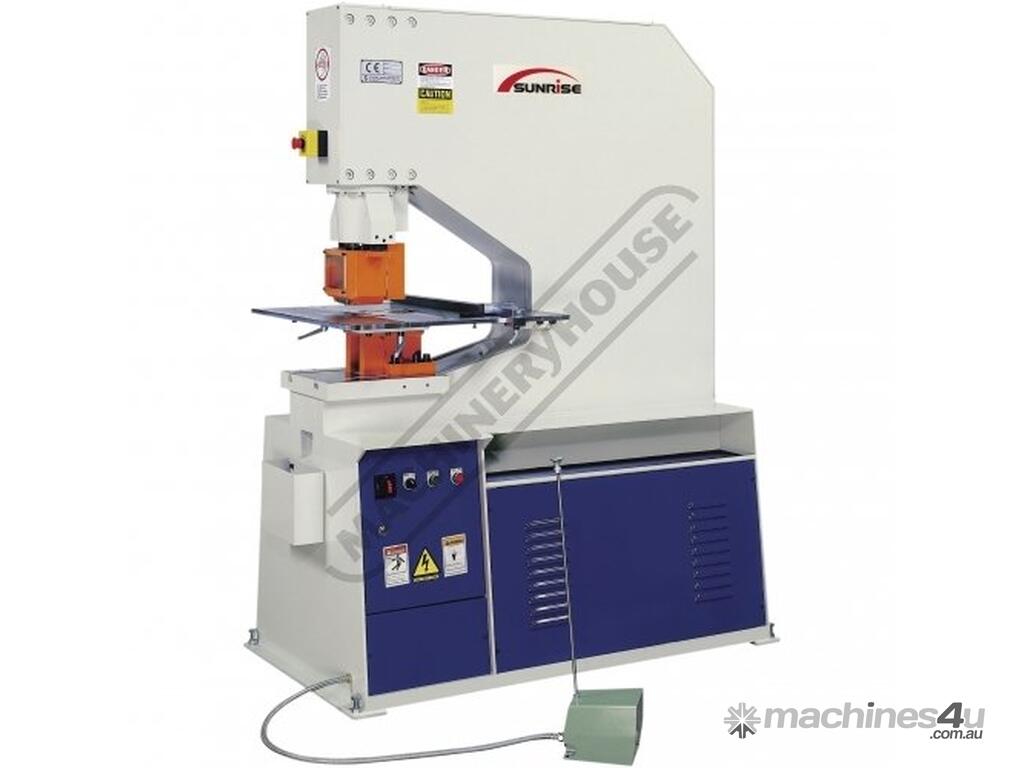

    SUNRISE PM-35XT Punching Machine 35 Tonne
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: P192

    The Sunrise Punching Machines are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

    Special designed hydraulic cylinder enables the machine to retract faster, also the cylinder is slimmer, which has a better aesthetic appearance to the looks of the machine.
    Punching capacities range from 35 to 200 tonnes, and are available with different throat depths to meet your different requirements.

    Please Note: All optional tooling used on the punching station of S/SD Punch & Shear machine can also be utilised for range of PM Punching models.


    Also Available
    - CNC Models with features like:
    - Hydraulic material clamping
    - Auto datum point
    - Transfer ball table
    - MODELS AVAILABLE 35T TO 200T

    Features:
    Specially designed hydraulic circuit system provides high performance efficiency and accuracy
    Throat depth of 760mm
    C-type rigid frame structure
    A 2-hole overhang die holder and a 2-piece gauging table are provided as standard equipment
    Complete range of optional attachments

    Pre-Commissioning:
    1. Punching machine is run & tested prior delivery
    2. Hydraulic oil is included with machine

    Includes:
    - 6 sets of round punches & dies:
    - Punches: 20 22 24 26 28 & 30mm
    - Dies: 20.7 23.2 25.2 27.2 29.2 & 31.2mm



    Specifications:
    ORDER CODE: P192
    MODEL: PM-35XT
    Punching Pressure (Tonne): 35
    Punching Table Feed (Type): Manual
    Punching Table Dimensions (mm): 700 x 950
    Punching Ø x Thickness Capacity - Mild Steel (mm): Ø18 x 14, Ø50 x 5
    Channel Flange Punching (h) (mm): 180
    Throat Depth (mm): 760
    Maximum Stroke Length (mm): 100
    Cycle/min (20mm Stroke) (cpm): 41
    Table Working Height (mm): 1050
    Motor Power (kW / hp): 3.75 / 5
    Voltage (V): 415
    Shipping Dimensions (L x W x H) (cm): 214 x 97 x 206
    Nett Weight (kg): 2000
