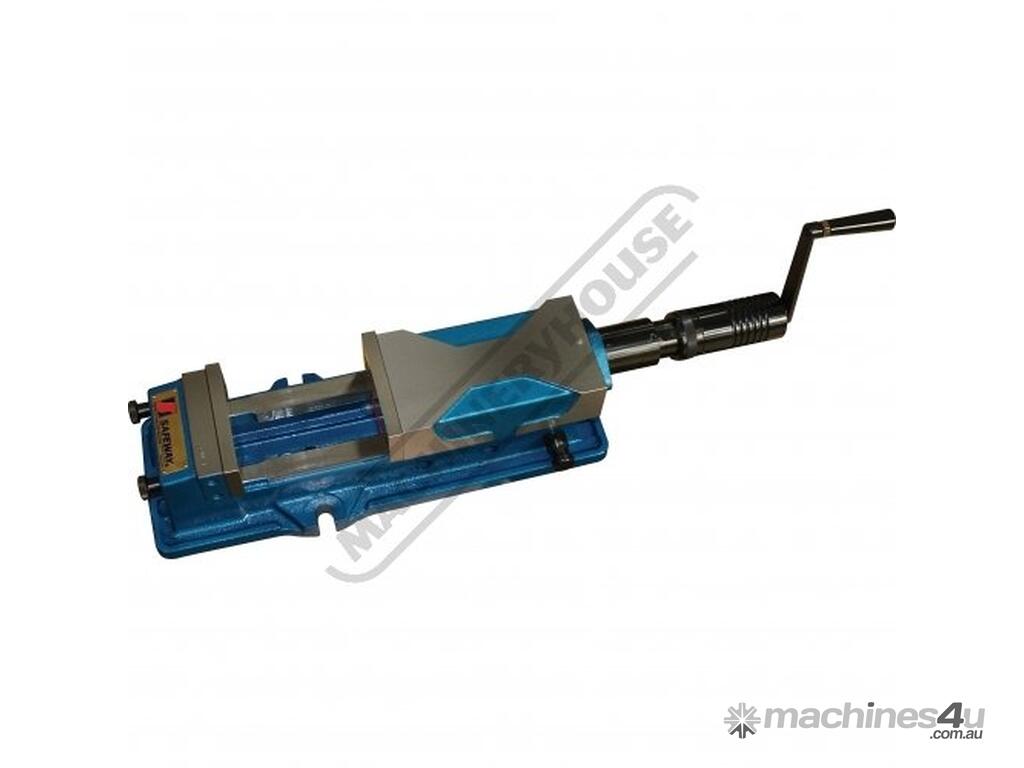

PHV-160 Safeway Mechanical/Hydraulic Machine Vice 160mm Jaw Width 310mm Jaw Opening

NSW,QLD,VIC,WA - Delivers Nationally

PHV-160 Safeway Mechanical/Hydraulic Machine Vice 160mm Jaw Width 310mm Jaw Opening :      $1,350 AUD ($1,485 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Safeway
    Model:
    PHV-160
    Sellers stock ID:
    V332
    Description

    SAFEWAY PHV-160 Safeway Mechanical/Hydraulic Machine Vice 160mm Jaw Width 310mm Jaw Opening
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: V332

    160mm MECHANICAL/HYDRAULIC MACHINE VICE:Precision manufactured from rigid material - Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength.
    ;All Safeway vices are precision ground and the surfaces set to the tolerances set out below. This allows these vices to be used in pairs and multiple configurations.

    Features:
    Flame-hardened to HRC 45 to take up wear and maintain accuracy
    The semi-sphere segment eliminates movable jaw lifting and creates a down force of 1kg for every 2kg of clamping force preventing the work piece from tilting
    The hydraulic cylinder is mounted externally for easy maintenance
    Large clamping range through screw adjustment and 3 pin positions in the base.
    The vise can be used in either a mechanical mode or in a hydraulic mode


    Specifications:
    ORDER CODE: V332
    MODEL: PHV-160
    C - Jaw Width (mm): 160
    Max. - Jaw Opening (mm): 310
    F - Jaw Height (mm): 58
    Max. Pressure (kgf): 4000
    A (mm): 625
    B (mm): 240
    D (mm): 205
    E (mm): 140
    G (mm): 82
    H (mm): 179
    I (mm): 39
    J (mm): 105
    K (mm): 340
    L (mm): 125
    M (mm): 208
    N (mm): 300
    O (mm): 196
    P (mm): 750
    Q (mm): 640
    X (mm): 18
    Keyway (W) (mm): 16
    Nett Weight (kg): 57
