PH-28A Pneumatic Power Hammer 1.6mm Mild Steel Capacity 711mm Throat Depth

NSW,QLD,VIC,WA - Delivers Nationally

PH-28A Pneumatic Power Hammer 1.6mm Mild Steel Capacity 711mm Throat Depth :      $12,500 AUD ($13,750 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    BAILEIGH
    Sellers stock ID:
    B9040
    Description

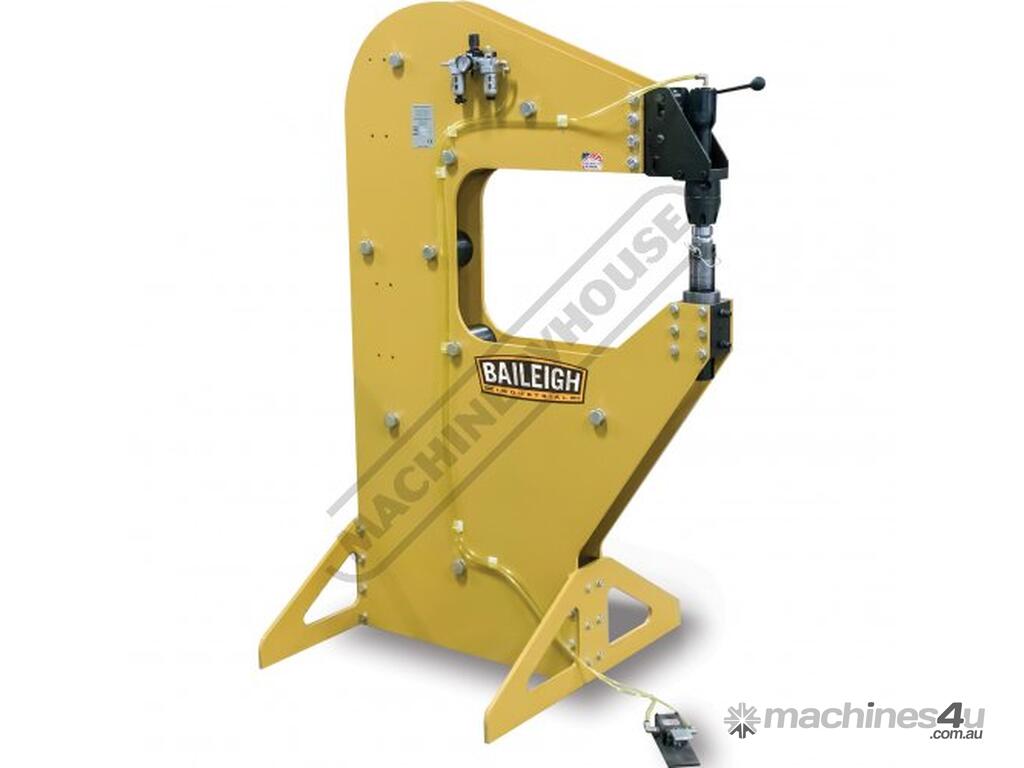

    BAILEIGH PH-28A Pneumatic Power Hammer 1.6mm Mild Steel Capacity 711mm Throat Depth
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B9040

    Shrink and stretch with air! The compact, USA-made PH-28A hits much harder than traditional pneumatic power hammers. You can even use a thumbnail shrinker die (included).

    Recommended for: Startup automotive shops, metal shapers working on airplane parts, and metal artists.

    Features:
    711mm throat can handle larger panels than the MH-19 can
    Stretches shrinks and planishes up to 1.6mm mild steel
    Variable speed from 0 to 1000 beats per minute
    Runs on 120psi compressed air
    Regulator on the side lets you control the airflow
    Air-powered system is much quieter than a mechanical machine
    Foot pedal operation keeps your hands free to move the material
    Quick-release handle on the front allows you lift the tool up and take the material out
    Comes with 7 tooling sets:
    63.5mm thumbnail shrinking dies
    63.5mm master flat top die
    25.4mm linear stretch die
    12" (300mm) 24" (600mm) and 36" (914mm) radius dies
    Oiler system on the side can deliver oil directly to the tool for convenient maintenance
    You can add an optional planishing hammer attachment to the side to create an all-in-one machine
    Small footprint is perfect for home shops or production facilities
    Heavy 12.7mm steel plate frame avoids flex and ensures that the machine’s force fully transfers to the material for high-quality results

    Includes:
    - 63.5mm Thumbnail Shrinking Dies
    - 63.5mm Master Flat Top Die
    - 25.4mm Linear Stretch Die
    - 63.5mm x 36" (914mm) Radius Die
    - 63.5mm x 24" (600mm) Radius Die
    - 63.5mm x 12" (300mm) Radius Die



    Specifications:
    ORDER CODE: B8940
    MODEL: PH-28A
    Machine (Type): Pneumatic Power Hammer
    Machine (Type): ~
    Mild Steel - Capacity (mm / Gauge): 1.6 / 16
    Aluminium - Capacity (mm / Gauge): 2 / 14
    Cubic feet per minute (CFM): 15 @ 120psi
    Tooling Height Adjustment (mm): 38
    Throat Depth (mm): 711
    Length of Stroke Adjustment (mm): ~
    Radius Anvil Sizes (mm): ~
    Speed - blows per minute (BPM): 0 - 1000 (Variable)
    Air Consumption (CFM): ~
    Working Height (mm): ~
    Air Pressure (psi): 80 - 120
    Motor Power (kW / hp): ~
    Voltage / Amperage (V / amp): ~
    Shipping Dimensions (L x W x H) (mm): 915 x 1220 x 1778
    Nett Weight (kg): 454
