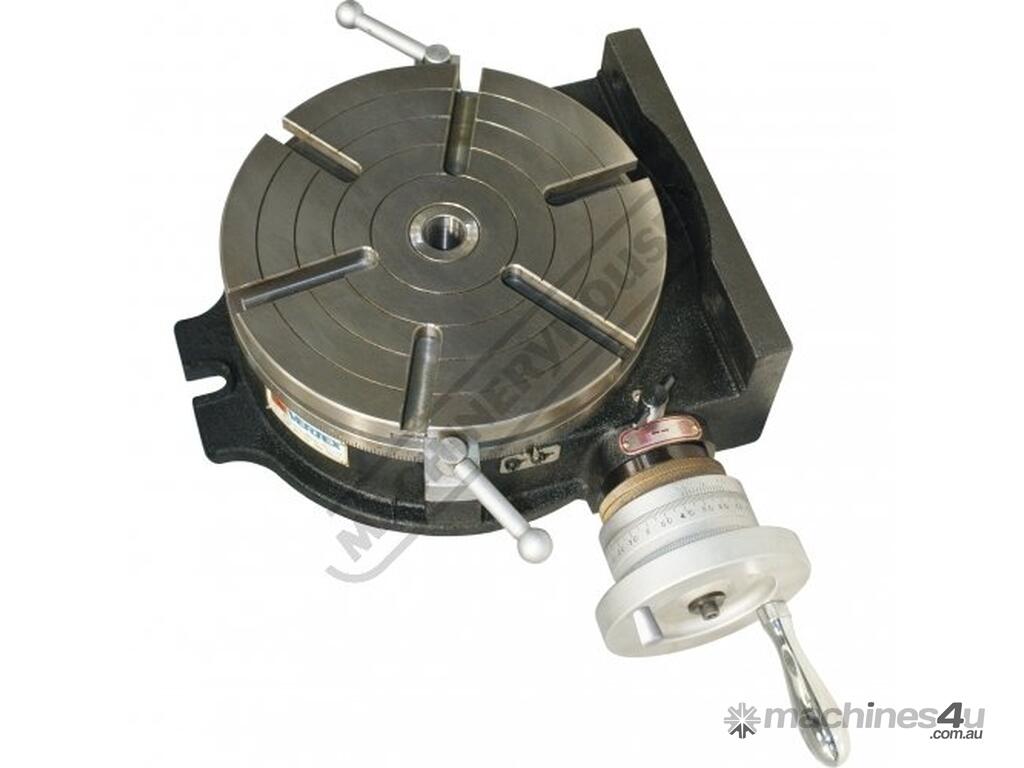

HV-10 Vertex Rotary Table Ø254mm

NSW,QLD,VIC,WA - Delivers Nationally

HV-10 Vertex Rotary Table Ø254mm :      $720 AUD ($792 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Vertex
    Model:
    HV-10
    Sellers stock ID:
    R010
    Description

    VERTEX HV-10 Vertex Rotary Table Ø254mm
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: R010

    Manufactured in Taiwan

    The Vertex Rotary Table has been designed to be used where a precision work positioning device is required. It allows the operator to mill or drill components at exact intervals around a fixed axis.
    Additional indexing plates can be fitted to allow the Vertex Rotary Table to be used as a Dividing Head.
    The Vertex Rotary Table can be used in both the horizontal or vertical plane.

    Features:
    The Vertex Rotary Table is manufactured from high-density Meehanite cast iron with ground surface areas on the table and body to ensure smooth rotation
    Critical wear parts are hand finished for ultra precision
    All tables are tested for accuracy using 'Heidenhain' electronic equipment to ensure continuing quality
    Worm is hardened and precision ground with a ratio of 90:1
    Table is graduated to a full 360º so one turn of the handle moves the table 4º
    The collar on the handle is graduated with a vernier scale readings down to 10 seconds are possible


    Specifications:
    ORDER CODE: R010
    MODEL: HV-10
    Size (mm): 254
    A1 (mm): 110
    D (mm): 250
    H (mm): 115
    H1 (mm): 165
    A (mm): 325
    B (mm): 280
    e (mm): 14
    g (mm): 17
    Number of T-Slots (No.): 6
    T-Slot Size (mm): 14
    Taper In Centre (MT): 3MT
    Nett Weight (kg): 40
