HPK-100NC Hydraulic Section & Pipe Rolling Machine 100 x 100 x 12mm Angle Capacity Includes 3-Axis 7

NSW,QLD,VIC,WA - Delivers Nationally

HPK-100NC Hydraulic Section & Pipe Rolling Machine 100 x 100 x 12mm Angle Capacity Includes 3-Axis 7 :      $45,950 AUD ($50,545 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Sahinler
    Model:
    HPK-100NC
    Sellers stock ID:
    S758C
    Description

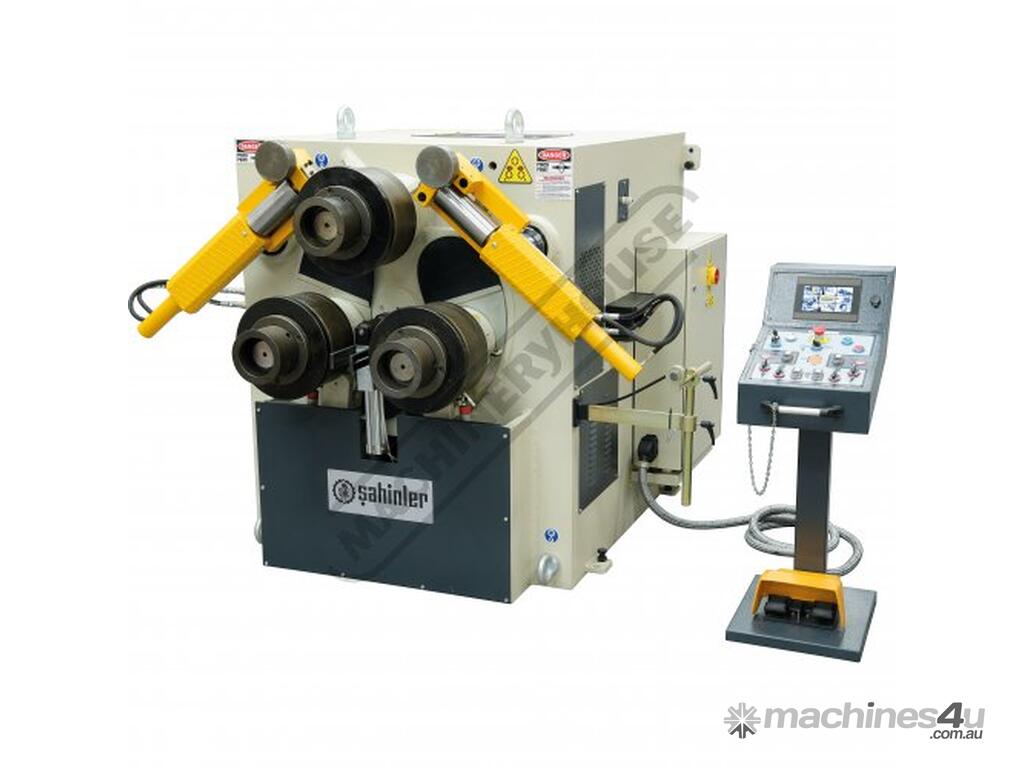

    SAHINLER HPK-100NC Hydraulic Section & Pipe Rolling Machine 100 x 100 x 12mm Angle Capacity Includes 3-Axis 7.7" Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: S758C

    NC panel provides you to control an axis on manual, automatic or semi automatic mode, X & Y Axis can be moved by control buttons, X-Axis = rotation of left & right drive rollers and Y-Axis = up & down position of the top roller. NC control unit has store up to 500 programs with 200 lines on each program. The storage capacity can be increased to 10000 programs with the use of a USB flash memory stick.

    Features:
    NC 3-Axis easy view 7.7" control panel
    Rolls are hardened & made from high quality steel
    3 axis lateral angle guide rollers (2 axis hydraulic operated via pendant)
    Drive shafts are hardened and ground with double taper roller bearing support
    Machine can be set up in horizontal or vertical working position
    Roving foot pedal control with emergency stop
    Hydraulic lateral angle guide rolls
    Three rollers are powered
    European quality

    Includes:
    - Includes standard rolls
    - Independently adjustable hydraulic bottom rollers for pre-bend
    - 3-Axis hydraulic lateral angle guide rollers



    Specifications:
    ORDER CODE: S758C
    MODEL: HPK-100NC
    Powered Driven Rolls (Qty): 3
    Bending Rolls (Type): Hydraulic - Left & Right
    Top Roll Diameter (Ø) (mm): 315
    Flat Bar Edge Capacity - MS (size / Ø) (mm): 100 x 20 / 800
    Flat Bar Capacity - MS (size / Ø) (mm): 200 x 30 / 1200
    Square Bar Solid Capacity - MS (size / Ø) (mm): 60 x 60 / 750
    Rectangle Tube Capacity - MS (size / Ø) (mm): 100 x 40 x 4 / 1300*
    Square Tube Capacity - MS (size / Ø) (mm): 80 x 50 x 5 / 1500*
    Round Bar Solid Capacity - MS (size / Ø) (mm): Ø75 / 800*
    Round Tube Capacity - MS (size / Ø) (mm): Ø125 x 2.5 / 1400*
    Round Pipe Capacity - MS (size / Ø) (inch / mm): Ø4" x 6.02mm / 1000mm*
    Angle Capacity - MS (size / Ø) (mm): 100 x 100 x 12 / 1000
    Motor Power (kW / hp): 7.5 / 10
    Voltage / Amperage (V / amp): 415
    Dimensions (L x W x H) (mm): 2000 x 1450 x 1700
    Note: Requires Additional Tooling (No / Yes*): Yes*
    Shipping Dimensions (L x W x H) (cm): 200 x 145 x 180
    Nett Weight (kg): 3650


    To Purchase Online Please Visit The Machineryhouse Website & Search For 'S758C'
