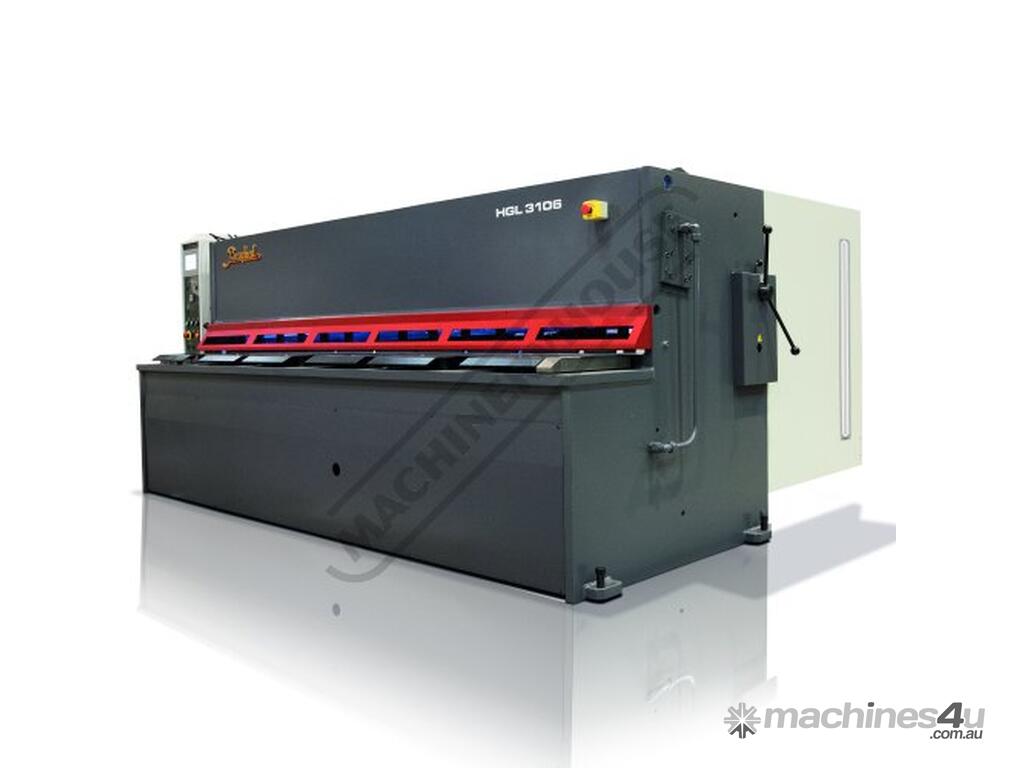

HGL-3106 Hydraulic NC Guillotine 3060 x 6mm Mild Steel Shearing Capacity 1-Axis NC Cybelec Cybtouch

NSW,QLD,VIC,WA - Delivers Nationally

HGL-3106 Hydraulic NC Guillotine 3060 x 6mm Mild Steel Shearing Capacity 1-Axis NC Cybelec Cybtouch :      $43,950 AUD ($48,345 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Baykal
    Model:
    HGL-3106
    Sellers stock ID:
    S859A
    Description

    BAYKAL HGL-3106 Hydraulic NC Guillotine 3060 x 6mm Mild Steel Shearing Capacity 1-Axis NC Cybelec Cybtouch 8W Touch Screen Control & Hardened Ballscrew Backgauge
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: S859A

    Features:
    Cybelec Cybtouch 8W NC touch colour screen control intuitive interface online help and many other user friendly automatic functions
    1000mm hardened ballscrew backgauge with 0.1 mm precision with digital readout display
    Shear blades made from tough and wear-resistant alloyed material: Top blade - two cutting edges & Bottom blade - four cutting edges
    Swinging top beam working on high precision and self aligning roller bearings
    Rapid blade gap adjustment allow operator to quick adjust for material thickness
    LED shadow line lighting provides clear line on material
    Steel front guard with clear & obstruction free view
    Swing away backgauge enables operator to cut longer than 1000mm
    Individual hydraulic hold down system provide excellent material clamping
    Ball transfer on table allows material to slide with ease
    1000mm squaring arm with scale T-slot and flip-stop
    1000mm front material support arms
    Stroke counter keeps count per cut
    Rear safety light guarding

    Made in Turkey
    Mild steel capacity is rated on hot rolled material with 250MPA

    Pre-Commissioning:
    1. Guillotine is run & tested prior delivery
    2. Hydraulic oil is included with machine

    Includes:
    - CYBELEC CYBTOUCH-8W FEATURES:
    - Easy operating
    - Large vivid and high-contrast fully touchscreen
    - Simple pages clear display large keys
    - Intuitive user-friendly interface
    - Complete programming for efficient mass-production with multiple cuts
    - Easy single cuts thanks to the Easy page
    - On-line help and interactive warning pop-ups
    - Comfortable wireless data backup and software updating using PC or Notebook
    - USB memory stick port for data transfer/backup
    - Large variety of languages available



    Specifications:
    ORDER CODE: S859A
    MODEL: HGL-3106
    Shearing Capacity - Mild Steel (mm): 6
    Shearing Capacity - Stainless Steel (mm): 4
    Shearing Length (mm): 3060
    NC Backgauge Control (Type): NC Cybelec Cybtouch 8W
    Backgauge (Type): Hardened Ballscrew
    Backgauge Travel (mm): 1000
    Pneumatic Sheet Supports: ~
    Quick Action Blade Clearance Adjustment: Yes
    Strokes / min (SPM): 20
    Blade Angle (deg): 1.6º
    Blade Angle (deg): ~
    Throat Depth (mm): ~
    Motor Power (kW / hp): 11 / 15
    Voltage / Amperage (V / amp): 415
    Floor Space Requirements (L x W x H) (mm): ~
    Shipping Dimensions (L x W x H) (mm): 3690 x 2400 x 1800
    Nett Weight (kg): 5500
