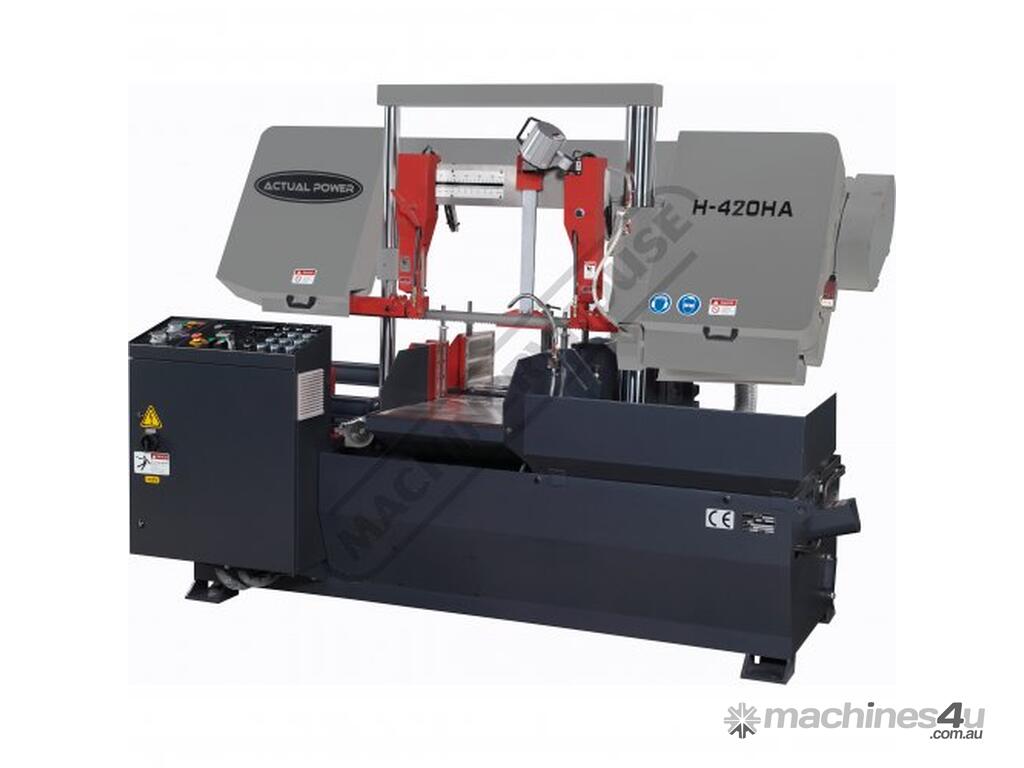

H-420HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed Includes Inverter Variable

NSW,QLD,VIC,WA - Delivers Nationally

H-420HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed Includes Inverter Variable :      $35,450 AUD ($38,995 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Actual power
    Model:
    H-420HA-NC
    Sellers stock ID:
    B120
    Description

    ACTUAL POWER H-420HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed Includes Inverter Variable Blade Speed Control, Auto Kerf Compensation, Auto Trim Cut, LCD Touch Screen, Hydraulic Vice Clamping & Hydraulic Downfeed Control 420 x 420mm (W x H) Rectangle Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B120

    Manufactured in Taiwan

    Fully automatic and intelligent HMI touch screen programmable NC control accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system

    Functions:
    1. AUTOMATIC KERF COMPENSATION: Blade thickness for multiple indexing: This function allows and calculates the blade thickness into the programmed cut length so you achieve your desired length required (factory pre-set)

    2. AUTOMATIC LOCATE TRIM CUT: When the material is placed in rear vice and this function is selected the machine will automatically find the material end and set up trim cut to the programmed value

    3. "SAVE-A-BLADE": To prevent carbide blade tooth deformities. This function retracts the material back approx 3mm away from the blade preventing the carbide blade teeth rubbing on the material on the return after completion of cut. This is activate via selecting the carbide blade function on the control panel

    4. AUTOMATIC MATERIAL ZERO POINT LOCATION: This function automatically finds the start point of the material preventing unnecessary trim cut waste

    5. AUTOMATIC SHUT-OFF: For finished jobs or out of stock

    6. SIMPLIFIED SELF DIAGNOSTICS: Error code display

    7. LCD SCREEN: With touch screen display

    Features:
    Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
    Idle wheel motion proximity switches shuts off machine if blade breaks or slips
    Coolant system incorporating a wash down hose with trigger gun
    Back-tilted saw frame for longer blade life
    Inverter controlled infinitely variable blade speed 20-100mpm
    Material height sensor for beam to rapid down and start cut feed rate when reached material
    Precision feed pressure & feed rate dual valve system for optimal performance in any material
    Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
    Large double columns precision ground for additional support
    Automatic (work height) material sensor with rapid approach
    Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2
    Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped
    Synchronised power driven blade cleaning brush removes swarf from blade
    Double retracting vice jaws (feeding vice only) reduces friction from jaws rubbing on material during the feeding process
    Full stroke hydraulic cylinder vice provides quicker set-up of jobs
    Hydraulic swarf conveyor directs excess waste to side of machine
    Fitted with vibration dampening device for better cut finishes blade wear & blade life
    Dual vice clamping providing burr free cut


    Specifications:
    ORDER CODE: B120
    MODEL: H-420HA-NC
    Operation Type: Fixed (Double Column)
    Operation Type: Automatic - Hitch Feed
    Round @ 90º (mm): 420
    Round @ 45º (mm): ~
    Round @ 60º (mm): ~
    Square @ 90º (mm): 420
    Square @ 45º (mm): ~
    Square @ 60º (mm): ~
    Rectangle (W x H) @ 90º (mm): 420 x 420
    Rectangle (W x H) @ 45º (mm): ~
    Rectangle (W x H) @ 60º (mm): ~
    Coolant System: Yes
    Table Working Height (mm): 800
    Cutting Head Beam Type: Fully-Automatic
    Cutting Head Beam Return: Auto-Hydraulic Return
    Cutting Head Down Feed Control: Adjustable Hydraulic
    Vice Clamping Fixture: Automatic-Hydraulic
    Bundle Cutting Fixture: Yes
    Blade Steps / Speeds (m/min): Variable 20-100
    Blade Size (L x W x T) (mm): 4880 x 41 x 1.3
    Motor Power (kW / hp): 5.5 / 7.5
    Voltage / Amperage (V / amp): 415
    Nett Weight (kg): 2500
