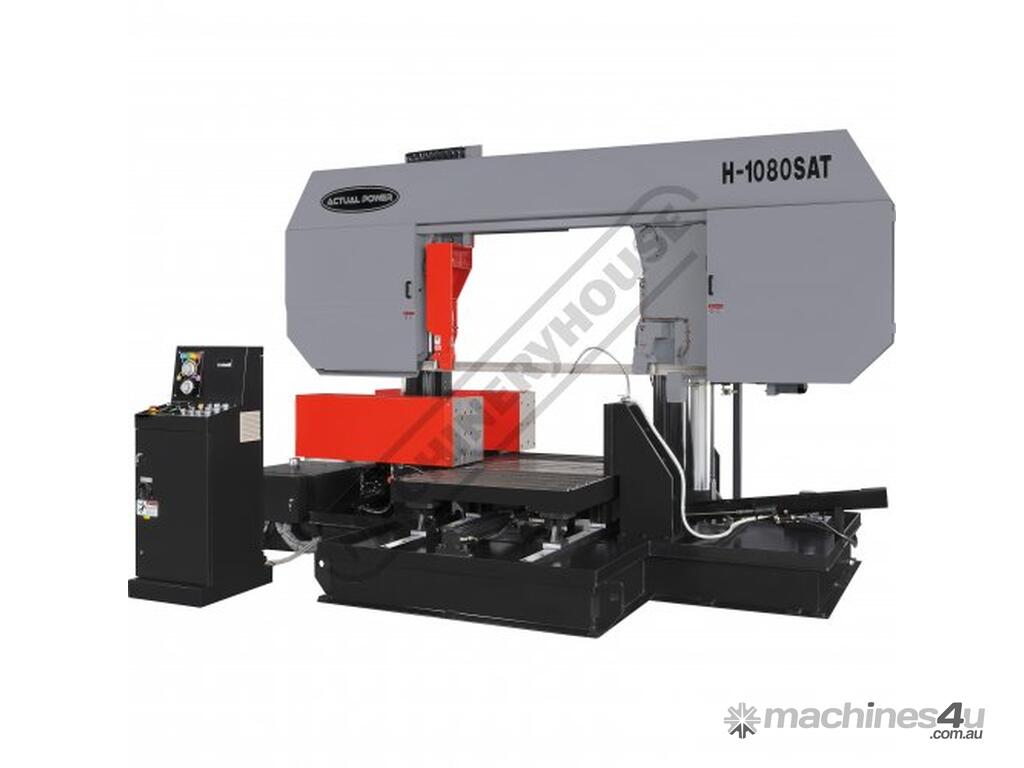

H-1080SAT Semi Automatic Double Column Heavy Duty Metal Cutting Band Saw 1000 x 800mm (W x H) Squar

NSW,QLD,VIC,WA - Delivers Nationally

H-1080SAT Semi Automatic Double Column Heavy Duty Metal Cutting Band Saw 1000 x 800mm (W x H) Squar :      Ask for Price

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Actual power
    Model:
    H-1080SAT
    Sellers stock ID:
    B131
    Description

    ACTUAL POWER H-1080SAT Semi Automatic Double Column Heavy Duty Metal Cutting Band Saw 1000 x 800mm (W x H) Square Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B131

    Manufactured in Taiwan

    Features:
    Hydraulic table feed system operated via control panel
    Idle wheel motion proximity switches shuts off machine if blade breaks or slips
    Coolant system incorporating a wash down hose with trigger gun
    Inverter controlled infinitely variable blade speed 20-80mpm
    Precision feed pressure & feed rate dual valve system for optimal performance in any material
    Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
    Hydraulic swarf conveyor directs excess waste to side of machine
    Large double columns precision ground for additional support
    Hydraulic lift up roller designed with manual material feed for set up
    Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2
    Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped
    Synchronised power driven blade cleaning brush removes swarf from blade
    Dual vice clamping providing burr free cut
    Full stroke hydraulic cylinder vice provides quicker set-up of jobs


    Specifications:
    ORDER CODE: B131
    MODEL: H-1080SAT
    Operation Type: Fixed (Double Column)
    Operation Type: Semi - Automatic
    Round @ 90º (mm): 800
    Round @ 45º (mm): ~
    Round @ 60º (mm): ~
    Square @ 90º (mm): 800
    Square @ 45º (mm): ~
    Square @ 60º (mm): ~
    Rectangle (W x H) @ 90º (mm): 1000 x 800
    Rectangle (W x H) @ 45º (mm): ~
    Rectangle (W x H) @ 60º (mm): ~
    Coolant System: Yes
    Table Working Height (mm): 650
    Cutting Head Beam Type: Semi-Automatic
    Cutting Head Beam Return: Auto-Hydraulic Return
    Cutting Head Down Feed Control: Adjustable Hydraulic
    Vice Clamping Fixture: Automatic-Hydraulic
    Bundle Cutting Fixture: ~
    Blade Steps / Speeds (m/min): Variable 20-80
    Blade Size (L x W x T) (mm): 8800 x 67 x 1.6
    Motor Power (kW / hp): 11 / 15
    Voltage / Amperage (V / amp): 415
    Nett Weight (kg): 9500
