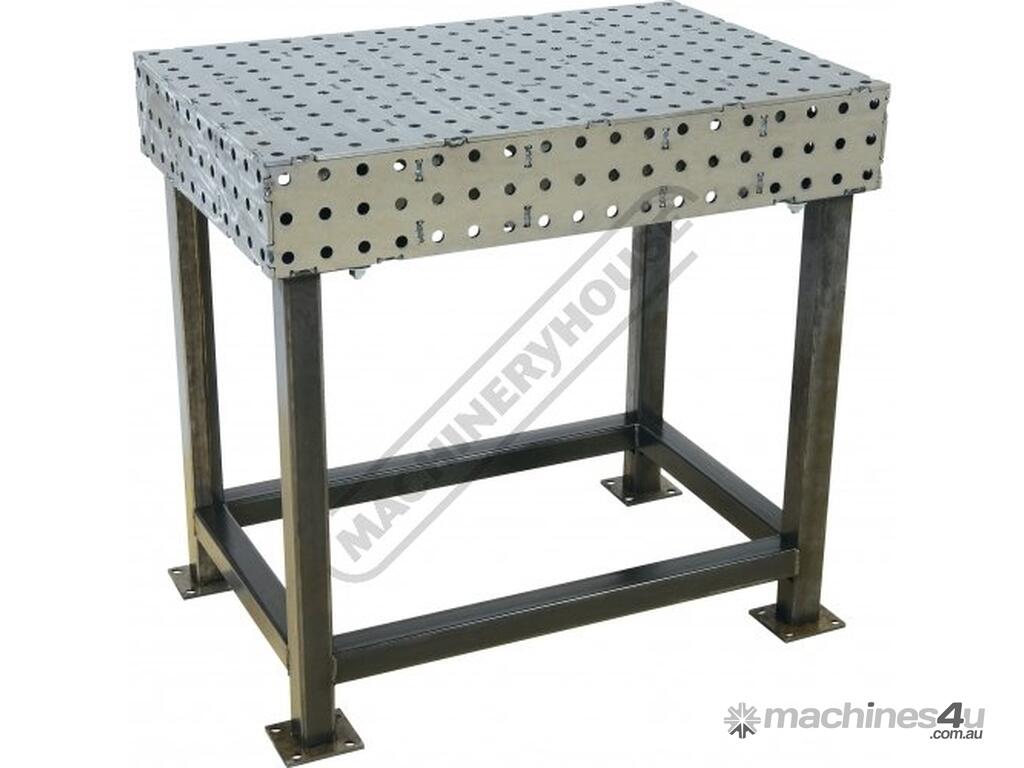

FBL6090-M CertiFlat fabBLOCK 3D Welding Table Tab & Slot U-Weld 600 x 900 x 860mm (LxWxH)
FBL6090-M CertiFlat fabBLOCK 3D Welding Table Tab & Slot U-Weld 600 x 900 x 860mm (LxWxH) : $1,040 AUD ($1,144 Inc. GST)
CERTIFLAT FBL6090-M CertiFlat fabBLOCK 3D Welding Table Tab & Slot U-Weld 600 x 900 x 860mm (LxWxH)
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W07832B
CertiFlat’s new fabBLOCK’s are the ultimate welding table system made in the USA. Designed using proprietary Tab & Slot methodology for building stiff and accurate welding fixtures that has been proven in real world manufacturing setups for over 15 years.
fabBLOCK Tables are built from tough 6.35mm Hot Rolled Pickled & Oiled Steel using state of the art CNC Laser Cutting technology for an exceptional fit-up. fabBLOCK’s assemble easily, by following the proper sequence (shown in easy to understand step by step instructions & video) the internal webbing forces the table flat during assembly and keeps it that way for years of trouble free and accurate welding.
Completely modular across all fabBLOCK sizes, allows you to easily add additional fabBLOCK’s or fabWing’s for unlimited configurations. All fabBLOCK’s incorporate the industry standard Ø16mm hole on a 50 x 50mm grid pattern for easy access to clamps and tooling, Great for use with Strong Hand Tools FixturePoint clamping systems.
Engineered Tab & Slot stiffening ribs for a guaranteed flat surface.
Proprietary Heat-Zoneâ„¢ design to eliminate warping during assembly and welding
Modular design allowing easy joining of additional fabBLOCKâ€™s for unlimited configurations
Working surfaces on all five sides for unlimited 3D fixturing configurations
All parts are laser cut to a very tight tolerance maintaining very high precision.
Ã˜16mm holes with a 50 x 50mm grid pattern
Includes leg kit
Compatible with Strong Hand Tools FixturePoint clamp systems
Please Note: assembly & welding is required to complete setup
ORDER CODE: W07832B
Type: CertiFlat 3D FabBLOCK
Leg Frame Type: Includes Legs
Table Top Size (mm): 600 x 900 x 150
Table Height with Stand (mm): 860
Table Side Height (mm): 150
Top Plate Thickness (mm): 6.35
Grid Pattern (mm): 50 x 50
Table Hole Diameter (mm): Ã˜16
Table Slots (mm): ~
Table Load Capacity (kg): ~
Nett Weight (kg): 90
