FB60120-M CertiFlat fabBLOCK 3D Welding Table Top Tab & Slot U-Weld 600 x 1200 x 150mm Table Top (Lx

NSW,QLD,VIC,WA - Delivers Nationally

FB60120-M CertiFlat fabBLOCK 3D Welding Table Top Tab & Slot U-Weld 600 x 1200 x 150mm Table Top (Lx :      $1,090 AUD ($1,199 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    CERTIFLAT
    Model:
    FB60120-M
    Sellers stock ID:
    W07834
    Description

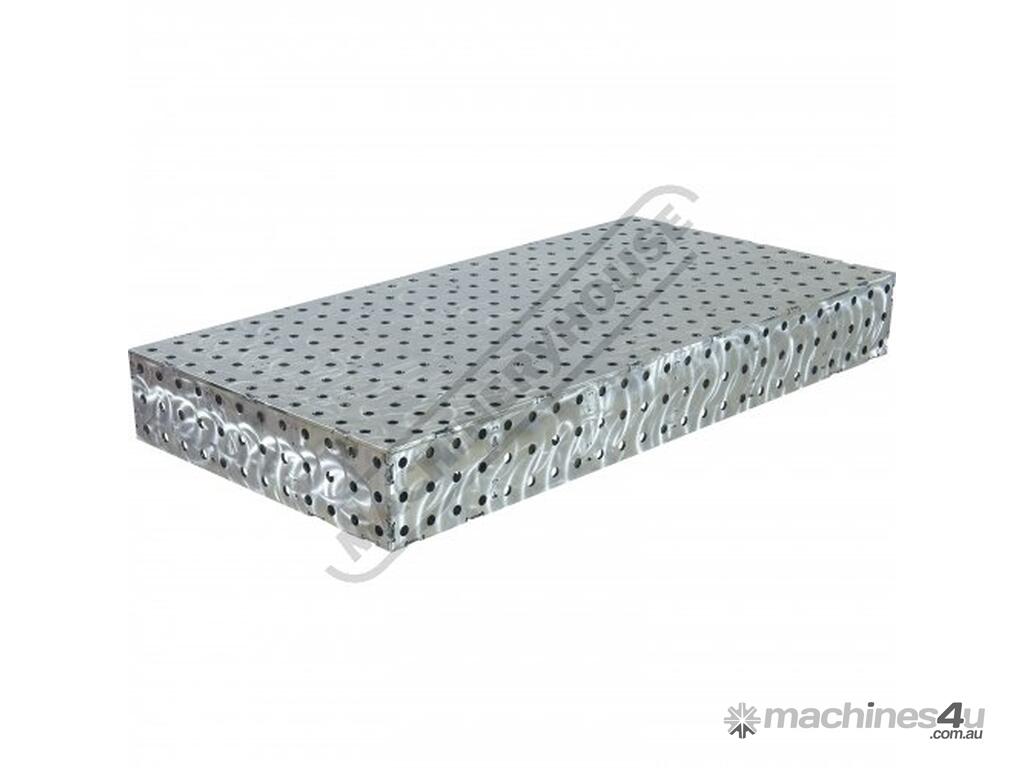

    CERTIFLAT FB60120-M CertiFlat fabBLOCK 3D Welding Table Top Tab & Slot U-Weld 600 x 1200 x 150mm Table Top (LxWxH)
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: W07834

    CertiFlat’s new fabBLOCK’s are the ultimate welding table system made in the USA. Designed using proprietary Tab & Slot methodology for building stiff and accurate welding fixtures that has been proven in real world manufacturing setups for over 15 years.

    fabBLOCK Tables are built from tough 6.35mm Hot Rolled Pickled & Oiled Steel using state of the art CNC Laser Cutting technology for an exceptional fit-up. fabBLOCK’s assemble easily, by following the proper sequence (shown in easy to understand step by step instructions & video) the internal webbing forces the table flat during assembly and keeps it that way for years of trouble free and accurate welding.

    Completely modular across all fabBLOCK sizes, allows you to easily add additional fabBLOCK’s or fabWing’s for unlimited configurations. All fabBLOCK’s incorporate the industry standard Ø16mm hole on a 50 x 50mm grid pattern for easy access to clamps and tooling, Great for use with Strong Hand Tools FixturePoint clamping systems.

    Features:
    Engineered Tab & Slot stiffening ribs for a guaranteed flat surface.
    Proprietary Heat-Zoneâ„¢ design to eliminate warping during assembly and welding
    Modular design allowing easy joining of additional fabBLOCK’s for unlimited configurations
    Working surfaces on all five sides for unlimited 3D fixturing configurations
    All parts are laser cut to a very tight tolerance maintaining very high precision.
    Ø16mm holes with a 50 x 50mm grid pattern
    Compatible with Strong Hand Tools FixturePoint clamp systems

    Please Note: assembly & welding is required to complete setup


    Specifications:
    ORDER CODE: W07834
    MODEL: FB60120-M
    Type: CertiFlat 3D FabBLOCK
    Finish: Standard
    Table Top Size (mm): 600 x 1200 x 150
    Table Side Height (mm): 150
    Top Plate Thickness (mm): 6.35
    Grid Pattern (mm): 50 x 50
    Table Hole Diameter (mm): Ø16
    Table Slot Size (mm): ~
    Table Load Capacity (kg): ~
    Nett Weight (kg): 119
