CS-8 Vertex Super Indexing Head 155mm Centre Height Ø63mm Bore

NSW,QLD,VIC,WA - Delivers Nationally

CS-8 Vertex Super Indexing Head 155mm Centre Height Ø63mm Bore :      $1,590 AUD ($1,749 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Vertex
    Model:
    CS-8
    Sellers stock ID:
    R004
    Description

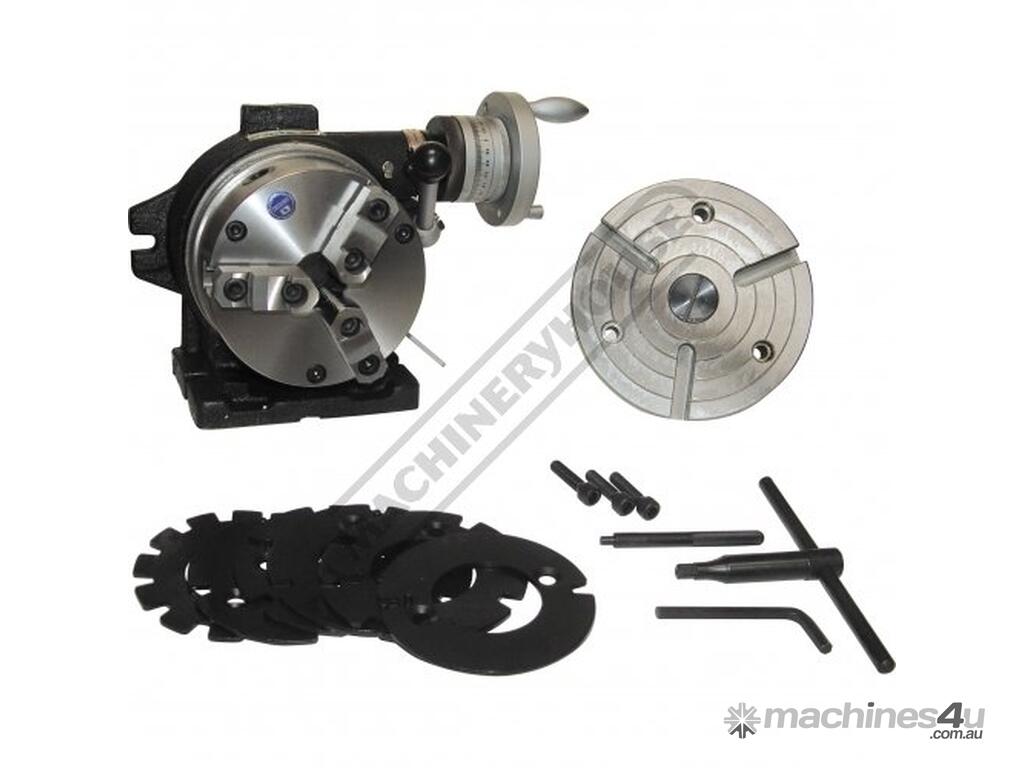

    VERTEX CS-8 Vertex Super Indexing Head 155mm Centre Height Ø63mm Bore
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: R004

    Manufactured in Taiwan

    Features:
    The Vertex Super Spacer is designed to be used on milling drilling or any machine where an indexing facility is required
    Combines the advantages of super indexing with the flexibility of worm gear movement
    The 3-jaw chucks on both the 6" and 8" models have large through-bores
    Can be used in either vertical or horizontal plane
    Master indexing plate has 24 divisions and is permanently fixed inside the indexer. Divisions of 2 3 4 6 8 & 12 can also be achieved by using sub plates. These can be installed quickly in the bottom of the indexer
    When the chuck is removed the unit can be used as a horizontal or vertical rotary table
    The worm gear has a ratio of 90:1. It can be dis-engaged for quick indexing work
    Worm is hardened and precision ground to minimise wear
    The operating collar is graduated in one minute increments and readings down to ten seconds can be set on the vernier scale
    The unit can be fitted with dividing plates

    Includes:
    - 200mm 3-Jaw Self-Centring Chuck
    - Face Plate
    - 6 indexing plates



    Specifications:
    ORDER CODE: R004
    MODEL: CS-8
    3 Jaw Chuck Size (mm): Ø203
    Bore (mm): Ø63
    A (mm): 310
    B (mm): 285
    C (mm): 243
    a (mm): 225
    b (mm): 160
    c (mm): 201
    d (mm): 82
    e (mm): 125
    f (mm): 75
    g (mm): 16
    h (mm): 155
    i (mm): 232
    j (mm): 90
    K (mm): 18
    Nett Weight (kg): 76


    To Purchase Online Please Visit The Machineryhouse Website & Search For 'R004'
