CS-350V Cold Saw, Includes Roller Conveyor & Stand Package Deal 160 x 90mm Rectangle Capacity Ø350m

NSW,QLD,VIC,WA - Delivers Nationally

CS-350V Cold Saw, Includes Roller Conveyor & Stand Package Deal 160 x 90mm Rectangle Capacity Ø350m :      $5,850 AUD ($6,435 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Sellers stock ID:
    K070A
    Description

    HAFCO METALMASTER CS-350V Cold Saw, Includes Roller Conveyor & Stand Package Deal 160 x 90mm Rectangle Capacity Ø350mm Blade, Variable Blade Speed 24~120rpm
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: K070A

    The latest 415 volt Hafco MetalMaster manual cold saw consists of a 350mm circular saw blade that can run at 24 to 120rpm via a electronic variable blade speed control and also incorporates a coolant system with an adjustable flow control valve. These cold saws are designed to cut at 90º, or mitre up to 45º in either left or right side of the material simply by releasing the lever located at front of machine and swivelling the head to the desired angle. Each machine comes standard with a very heavy and strong cast iron frame base with a cast dual pivot saw head supported by an industrial swivel base system, which makes this MetalMaster cold saw one of the most rugged machines on the market.

    The MetalMaster manual cold saw head is well balanced and uses a long actuating handle giving the operator greater leverage and control to guide the saw blade through the work piece of tubing or pipe etc, with ease and utilises a quality head retraction system for returning the cold saw head to the start position. The vice clamps the work piece on both sides of a cut, which extends blade life because the cut off does not drop into the blade.

    Features:
    Electronic variable speed 24~120rpm
    2.2kW / 3hp 415V heavy duty motor
    Rugged cast iron construction offers years of accurate cutting
    Lock at any angle between -45° or +45° mitre in both directions via locking lever
    Degree markings engraved onto swivelling base for quick and accurate mitre cutting
    Dual material clamp system providing burr free cuts on both pieces of material
    Quick action vice clamp lever designed to increase production
    Built in blade coolant pump system with flow control valve
    Oil sight glass located on right side of the gearbox so operator can maintain correct lubrication levels according to specifications provided
    Dead man trigger switch located on cutting handle provides operator safety on/off power control
    Automatic retract safety blade guard covers blade when returned to home position
    Spring assisted head return provides a even balance during cutting operation and reduces operator fatigue
    HSS cutting blade is included for general types of material and thickness

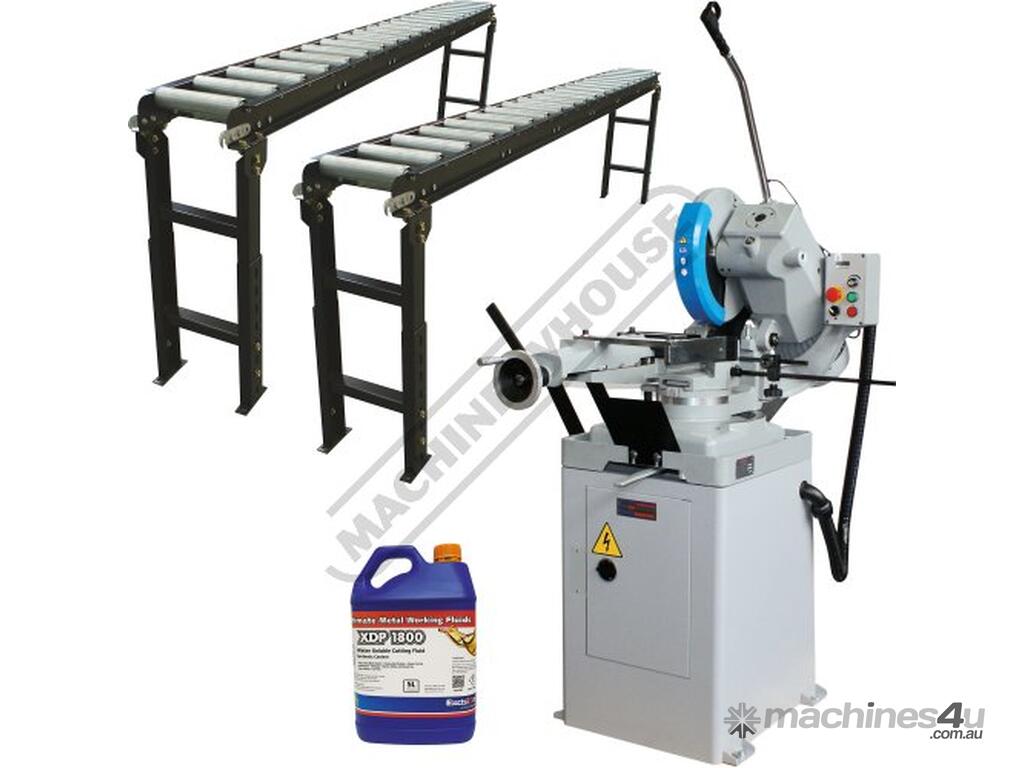

    Includes:
    - CS-350V Cold Saw - 415V
    - Machine Stand
    - Coolant System
    - Machine Length Stop
    - Dia. 350mm Blade
    - 2 x Roller Conveyors 290 x 3000mm - (L812)
    - 4 x Conveyor Stands 290mm - (L814)
    - Synthetic Metal Cutting Fluid



    Specifications:
    ORDER CODE: K070A
    MODEL: CS-350V Package
    Cutting Head Action: Manual
    Operation Type: Swivel - Dual Mitre
    Round Capacity @ 90º / 45º (mm): 120 / 100
    Square Capacity @ 90º / 45º (mm): 105 / 85
    Rectangle Capacity @ 90º / 45º (WxH) (mm): 160 x 90 / 85 x 70
    Blade Size - Diametre. x Bore (Ø) (mm): 350 x 32
    Vice Clamping Fixture: Manual
    Coolant System: Yes
    Table Working Height (with Stand) (mm): 1000
    Blade Speed (rpm): Variable 24~120
    Motor Power (kW / hp): 2.2 / 3
    Voltage / Amperage (V / amp): 415
    Shipping Dimensions (L x W x H) (cm): 310 x 100 x 170
    Nett Weight (kg): 370


    To Purchase Online Please Visit The Machineryhouse Website & Search For 'K070A'
