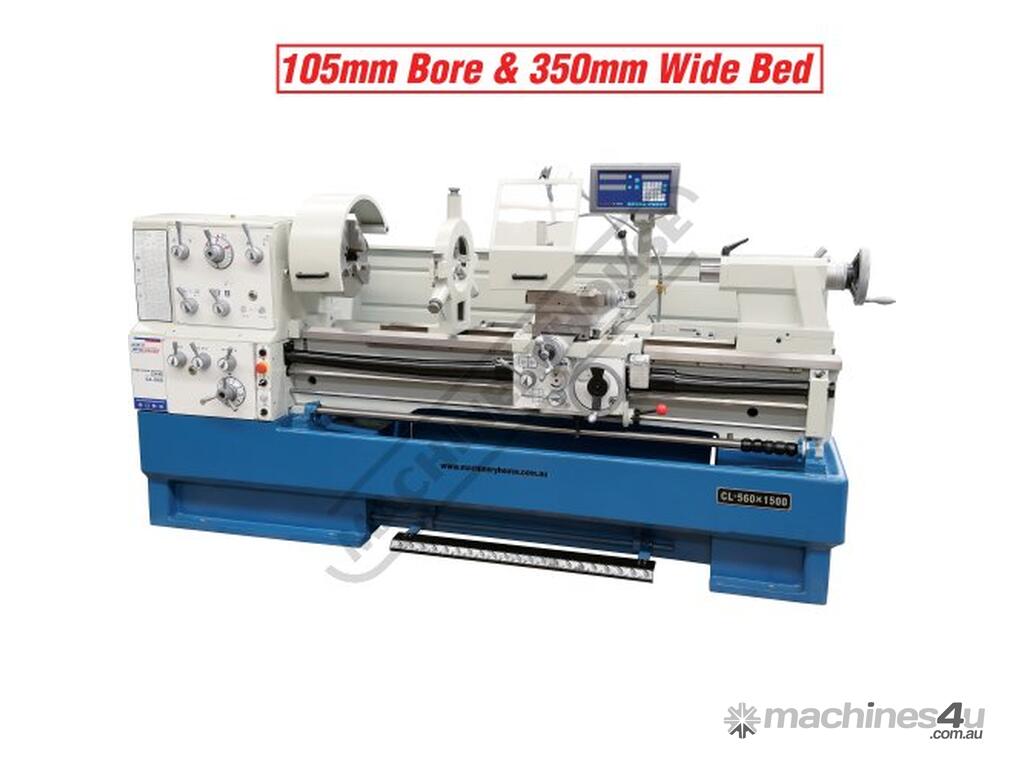

CL-560 Centre Lathe Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout

NSW,QLD,VIC,WA - Delivers Nationally

CL-560 Centre Lathe Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout :      $20,750 AUD ($22,825 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Sellers stock ID:
    L610D
    Description

    HAFCO METALMASTER CL-560 Centre Lathe Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout System, Quick Change Toolpost, Taper Turning Attachment & Auto Slide-way Lubrication
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: L610D

    Features:
    2 axis digital readout system
    Quick change toolpost
    Large 105mm spindle bore
    Taper turning attachment fitted to saddle
    Automatic lubrication pump oiling slides
    Triple bearings supporting headstock spindle
    Adjustable taper roller bearings providing spindle accuracy
    Precision 'V'-beds & headstock gears are all hardened & ground
    One piece cast iron base increases rigidity
    Overload protection on drive motor and coolant system
    Universal enclosed gearbox incorporating metric & imperial thread capabilities
    Inching button incorporated on the control panel for convenient spindle speed selection
    Foot operated spindle brake with safety cut out switch
    350mm wide induction hardened heavy duty cast iron bed
    Removable gap bed allowing workpiece to swing up to 690mm
    Chuck guard fitted with safety micro switch
    Powered longitudinal and cross feeds
    Adjustable 5 position length-stop mechanism for accurate repetitive operation
    Micro adjustable saddle stop
    Dual calibrated cross feed dial incorporating metric & imperial graduations
    Coolant system with flexible hose enabling operator to manipulate flow direction
    Oil level sight glass for headstock and gearbox
    Low voltage halogen work light
    D1-8 camlock spindle for quick chuck removal
    12 spindle speeds from 20-1600rpm
    7.5kW / 10HP 415V main motor

    Includes:
    - 2 axis digital readout system
    - Taper turning attachment
    - Quick change toolpost
    - Auto lubrication pump for slides
    - Concertina leadscrew covers
    - 320mm 3-jaw chuck with reverse jaws
    - 400mm 4-jaw chuck
    - 450m face plate
    - Fixed steady with roller bearings
    - Travelling steady with brass guides
    - Dead centres
    - Thread chasing dial
    - Foot brake
    - Coolant system
    - LED Work light
    - Rear splash guard
    - Spindle reducing bush



    Specifications:
    ORDER CODE: L610D
    MODEL: CL-560
    Swing Over Bed (mm): 560
    Distance Between Centres (mm): 1500
    Spindle Bore (mm): 105
    Swing In Gap (mm): 785
    Swing Over Cross-slide (mm): 355
    Digital Readout System Fitted: Yes
    Quick Change Toolpost Fitted: Yes
    Leadscrew Covers Fitted: Yes
    Taper Turning Attachment: Yes
    Coolant System: Yes
    Tool Height To Suit (mm): 25
    Centre Height (mm): 280
    Spindle Nose Size or Type: D1-8 Camlock
    Bed Width (mm): 350
    Headstock Spindle Taper (MT): 7
    Tailstock Taper (MT): 5
    Cross Slide Travel (mm): 316
    Compound Slide Travel (mm): 130
    Leadscrew Type: Metric
    Metric Cross Feed (X-Axis) (mm/rev): 0.020-0.573
    Imperial Cross Feed (X-Axis) (inch/rev): ~
    Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.059-1.646
    Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
    Metric Thread Steps & Pitch (No. / mm): 47 (0.2 - 14)
    Imperial Thread Steps & TPI (No. / TPI): 60 (2 - 112)
    3 Jaw Chuck Diameter (mm): 320
    4 Jaw Chuck Diameter (mm): 400
    Spindle Steps / Speeds (No. / rpm): 12 (20 - 1600)
    Motor Power (kW / hp): 7.5 / 10
    Voltage / Amperage (V / amp): 415
    Shipping Dimensions (L x W x H) (cm): 290 x 119 x 175
    Nett Weight (kg): 2700
