BS-912 Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Incl

NSW,QLD,VIC,WA - Delivers Nationally

BS-912 Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Incl :      $2,450 AUD ($2,695 Inc. GST)

  • Specifications
    Condition:
    New
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Model:
    BS-912
    Sellers stock ID:
    B014
    Description

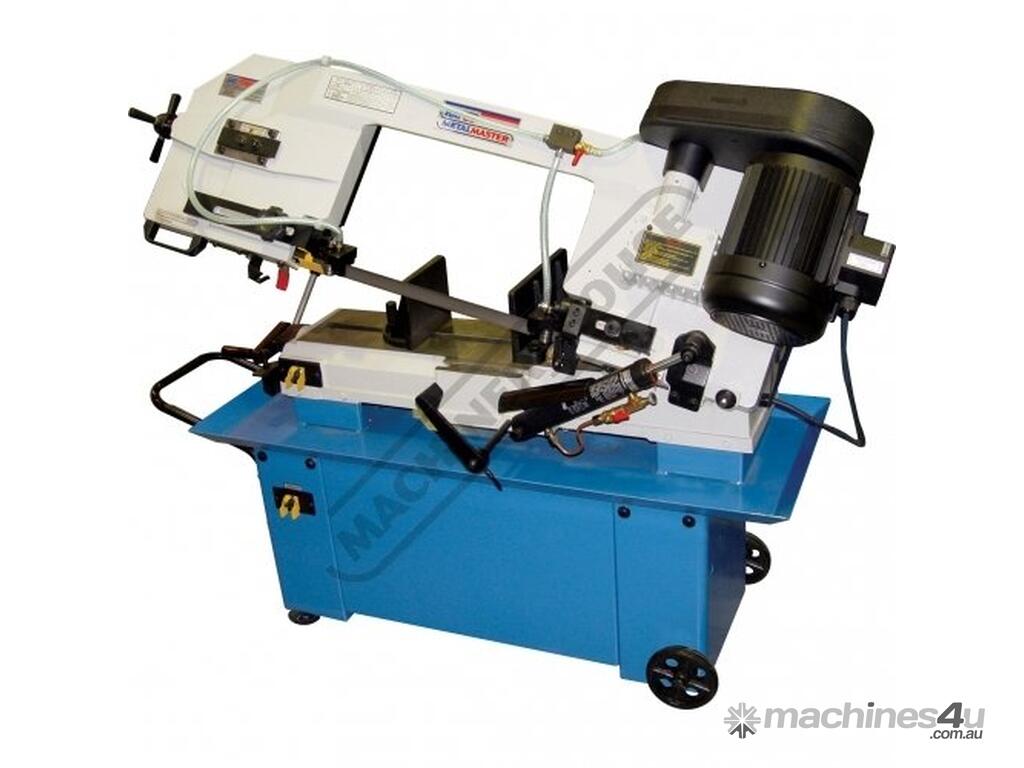

    HAFCO-METALMASTER BS-912 Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 305 x 178mm (W x H) Rectangle Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B014

    Manufactured in Taiwan

    The BS-912 is a larger 240 volt band saw suitable for the medium fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system and greatly increased cutting capacity.

    The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.

    Features:
    305 x 178mm (W x H) rectangular capacity
    Adjustable hydraulic feed cutting rate for multiple applications
    Mitre cuts to 45º using calibrated vice
    Built-in coolant system to both blade guides for maximum cutting efficiency
    Limit switch stops machine when cut is complete
    Quick action material clamping lever
    Adjustable blade roller guides provides accurate cutting
    Adjustable 4-speed pulley drive system enabling 26-50-73-95mpm cutting speeds
    Adjustable length stop for repetition cutting
    Wire wheel brush to clean swarf from blade
    Portable - on wheels for ease of use
    Automatic electric cut-out switch
    Heavy-duty 750W 240V fully enclosed fan-cooled motor


    Specifications:
    ORDER CODE: B014
    MODEL: BS-912
    Operation Type: Fixed Head
    Operation Type: ~
    Round @ 90º (mm): 230
    Round @ 45º (mm): 150
    Round @ 60º (mm): ~
    Square @ 90º (mm): 230
    Square @ 45º (mm): 127
    Square @ 60º (mm): ~
    Rectangle (W x H) @ 90º (mm): 305 x 178
    Rectangle (W x H) @ 45º (mm): 150 x 127
    Rectangle (W x H) @ 60º (mm): ~
    Coolant System: Yes
    Table Working Height (mm): 640
    Cutting Head Beam Type: Manual
    Cutting Head Beam Return: Manual Return
    Cutting Head Down Feed Control: Adjustable Hydraulic
    Vice Clamping Fixture: Manual
    Bundle Cutting Fixture: ~
    Blade Steps / Speeds (m/min): 26-50-73-95
    Blade Size (L x W x T) (mm): 2654 x 27 x 0.9
    Motor Power (kW / hp): 0.75 / 1
    Voltage / Amperage (V / amp): 240 / 10
    Nett Weight (kg): 185
