BS-7L Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Contr

NSW,QLD,VIC,WA - Delivers Nationally

BS-7L Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Contr :      $1,590 AUD ($1,749 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Model:
    BS-7L
    Sellers stock ID:
    B006
    Description

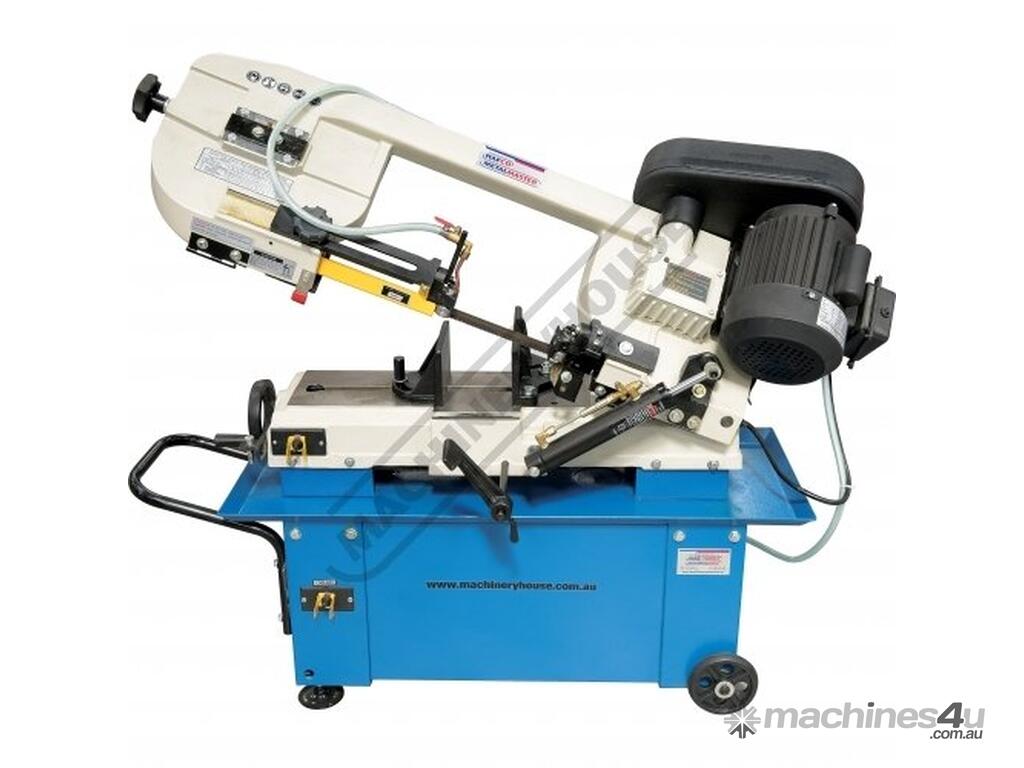

    HAFCO METALMASTER BS-7L Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Control 305 x 178mm (W x H) Rectangle Capacity
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: B006

    The BS-7L medium duty metal cutting band saw has many features on offer with a capacity of up to 178mm diameter or 305 x 178mm in steel. There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.

    The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.

    Features:
    305 x 178mm (W x H) rectangular capacity
    Adjustable hydraulic feed cutting rate for multiple applications
    Mitre cuts to 45º using calibrated vice
    Built-in coolant system for maximum cutting efficiency
    Limit switch stops machine when cut is complete
    Adjustable blade roller guides provides accurate cutting
    Adjustable 4-speed pulley drive system enabling 22-34-49-64mpm cutting speeds
    Adjustable length stop for repetition cutting
    Coolant system with flow control valve
    Wire wheel brush to clean swarf from blade
    Portable - on wheels for ease of use
    Vertical cutting table included
    Automatic electric cut-out switch
    Heavy-duty 0.75kW 1hp 240V fully enclosed fan-cooled motor


    Specifications:
    ORDER CODE: B006
    MODEL: BS-7L
    Operation Type: Fixed Head
    Operation Type: ~
    Round @ 90º (mm): 178
    Round @ 45º (mm): 127
    Round @ 60º (mm): ~
    Square @ 90º (mm): 178
    Square @ 45º (mm): 115
    Square @ 60º (mm): ~
    Rectangle (W x H) @ 90º (mm): 305 x 178
    Rectangle (W x H) @ 45º (mm): 120 x 115
    Rectangle (W x H) @ 60º (mm): ~
    Coolant System: Yes
    Table Working Height (mm): 550
    Cutting Head Beam Type: Manual
    Cutting Head Beam Return: Manual Return
    Cutting Head Down Feed Control: Adjustable Hydraulic
    Vice Clamping Fixture: Manual
    Bundle Cutting Fixture: ~
    Blade Steps / Speeds (m/min): 22-34-49-64
    Blade Size (L x W x T) (mm): 2362 x 19 x 0.8
    Motor Power (kW / hp): 0.75 / 1
    Voltage / Amperage (V / amp): 240 / 10
    Nett Weight (kg): 153
