BS-0 Vertex Dividing Head - Semi Universal 100mm Centre Height Suits 130mm 3-Jaw Chuck

NSW,QLD,VIC,WA - Delivers Nationally

BS-0 Vertex Dividing Head - Semi Universal 100mm Centre Height Suits 130mm 3-Jaw Chuck :      $590 AUD ($649 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Vertex
    Model:
    BS-0
    Sellers stock ID:
    D001
    Description

    VERTEX BS-0 Vertex Dividing Head - Semi Universal 100mm Centre Height Suits 130mm 3-Jaw Chuck
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: D001

    Manufactured in Taiwan

    The Vertex Dividing Head is a tool that is used to divide a circle into equal spacers. The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.

    The Vertex Semi Universal Dividing Head can be tilted through a full 90 degrees from horizontal to vertical making it a must when manufacturing bevel gears or key-ways in tapers.

    Features:
    The Vertex Dividing Head is suitable for direct and indirect indexing
    Hardened and ground spindle rigidly held between taper roller bearings
    Improved design with spindle spigot nose for a more accurate chuck mount
    Worm is hardened and ground with ratio between worm and worm wheel 40:1
    Direct indexing designed for quick divisions of No's 2 3 4 6 8 12 & 24
    The head can be swivelled from 10º below horizontal to 90º vertical
    Designed to carry out all types of gear cutting precision dividing
    Slotted base on dividing head & tailstock for use with key steel to align quickly on machine

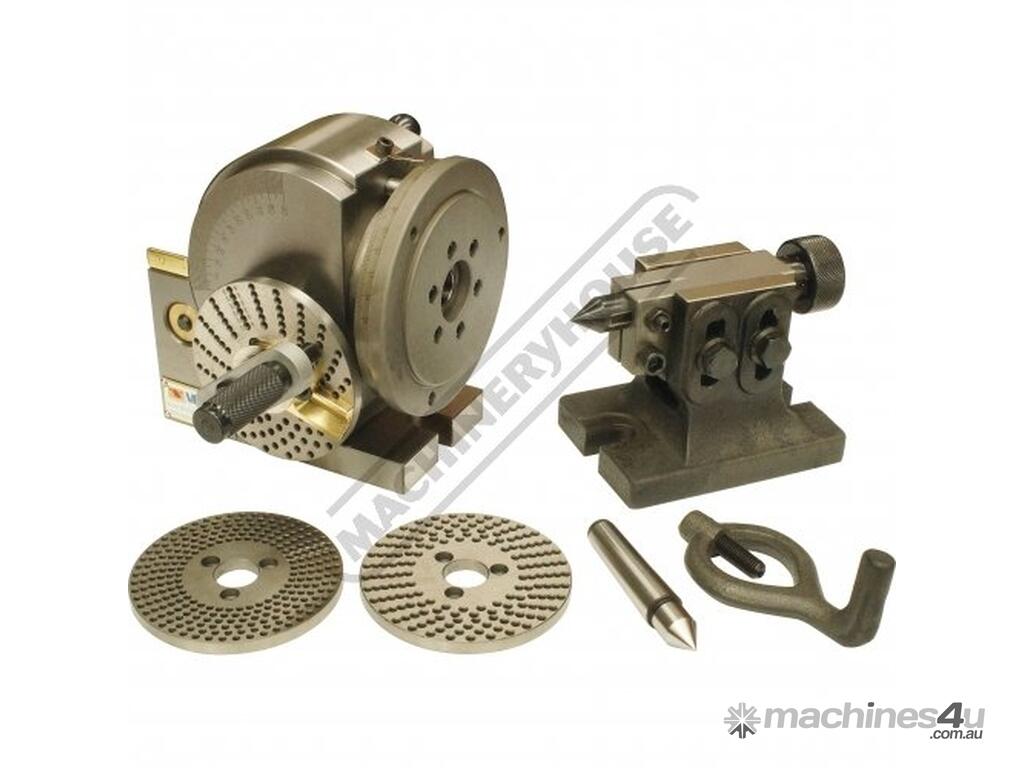

    Includes:
    - Backing plate suits 130mm front mount 3 jaw chuck
    - Dividing plates
    - Tailstock
    - Dead centre
    - Drive dog



    Specifications:
    ORDER CODE: D001
    MODEL: BS-0
    Taper (MT): MT2
    Bore (mm): 18
    A (mm): 189
    B (mm): 140
    H (mm): 173
    h (mm): 100
    a (mm): 160
    b (mm): 91
    g (mm): 13
    A1 (mm): 167
    B1 (mm): 80
    H1 (mm): 107.5
    h1 (mm): 100
    a1 (mm): 130
    b1 (mm): 92
    g1 (mm): 13
    Nett Weight (kg): 20


    To Purchase Online Please Visit The Machineryhouse Website & Search For 'D001'
