BMT-2045AH Precision Hydraulic Surface Grinder 500 x 235mm Table Travel

NSW,QLD,VIC,WA - Delivers Nationally

BMT-2045AH Precision Hydraulic Surface Grinder 500 x 235mm Table Travel :      $26,500 AUD ($29,150 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Bemato
    Model:
    BMT-2045AH
    Sellers stock ID:
    G243
    Description

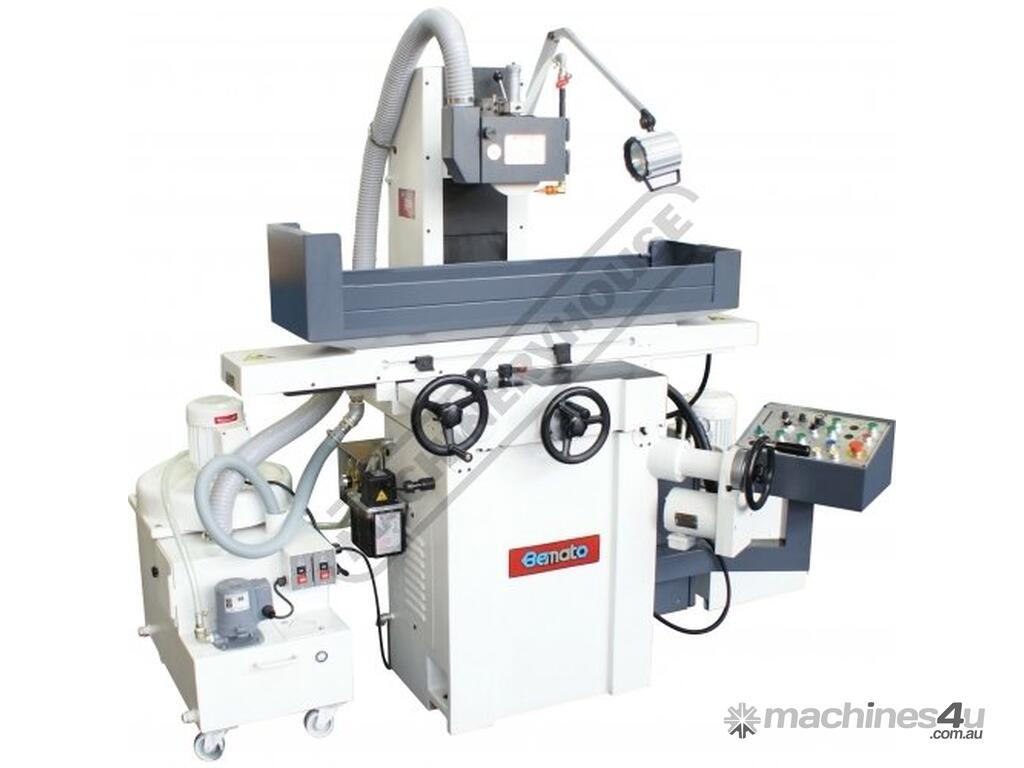

    BEMATO BMT-2045AH Precision Hydraulic Surface Grinder 500 x 235mm Table Travel
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: G243

    Manufactured in Taiwan

    NOTE: Larger models also available on special order request

    Features:
    Spindle contains P4 grade pre-loaded precision angular contact bearings. The spindle and motor are dynamically balanced
    V-way slides are coated with Turcite-B to minimise friction between slides.
    Automatic pressure lubrication system to slide-ways and screws with timer adjustment providing optimum machine conditions
    High-tensile ribbed cast iron base and column tempered and stress relieved for maximum rigidity and minimum vibration
    Design and quality assurance exceeds DIN JIS and ISO standards

    Includes:
    - Electromagnetic chuck with demagnetise
    - Rapid vertical up/down feed
    - Balancing arbor
    - Balancing stand
    - Parallel wheel dresser
    - Coolant system
    - Wheel flange
    - Vertical micro feed
    - Work light



    Specifications:
    ORDER CODE: G243
    MODEL: BMT-2045AH
    AD5 Controller: ~
    Magnetic Chuck Size (mm): 450 x 200
    Longitudinal Table Traverse - Maximum (mm): 500
    Cross Table Traverse - Maximum (mm): 235
    Table Bed Size (mm): ~
    Spindle To Table - Maximum (mm): 450
    Wheel Diameter (mm): 205
    Vertical Increment Graduations (mm): 0.01
    Vertical Graduations Per Revolution (mm/rev): 2
    Cross Increment Graduations (mm): 0.02
    Cross Graduations Per Revolution (mm/rev): 5
    Spindle Motor (kW / hp): 1.5 / 2
    Voltage / Amperage (V / amp): 415
    Shipping Dimensions (L x W x H) (cm): 212 x 146 x 200
    Nett Weight (kg): 1150


    To Purchase Online Please Visit The Machineryhouse Website & Search For 'G243'
