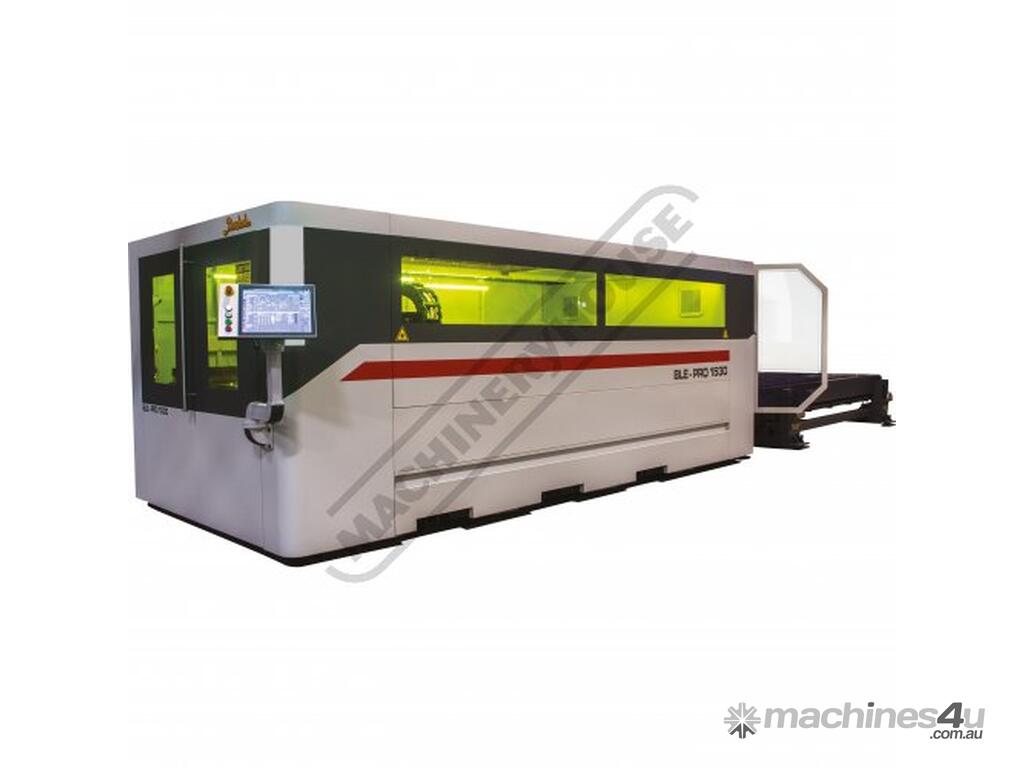

BLE 1530 PRO Baykal Fiber Laser Cutting System 3050 x 1525mm Table, Includes Automatic Sheet Exchang

NSW,QLD,VIC,WA - Delivers Nationally

BLE 1530 PRO Baykal Fiber Laser Cutting System 3050 x 1525mm Table, Includes Automatic Sheet Exchang :      Ask for Price

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Baykal
    Sellers stock ID:
    L7851
    Description

    BAYKAL BLE 1530 PRO Baykal Fiber Laser Cutting System 3050 x 1525mm Table, Includes Automatic Sheet Exchange Tables IPG YLS 3000W Fiber Laser & Beckhoff CNC Control - Cuts up to 20mm
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: L7851

    The BLE-1530 machine is a compact yet fast and powerful machine with cutting capacity of 1500 x 3000mm. High speed servo motors coupled to helical rack & pinion drives give the machine it’s high speed acceleration of 1.2G with a top speed of 110m/min rapid traverse whilst maintaining accuracies measured in microns.

    The machine is constructed with quality components sourced from around the world such as IPG laser, Precitec autofocus cutting heads and Beckhoff CNC systems. The motorised sheet exchange table is standard and the BLE-1530 can be equipped with a selection of fiber laser systems to suit your cutting application and budget.

    Features:
    IPG YLS 3000 laser source - IPG Photonics is the leading developer and manufacturer of high-performance fiber lasers IPG's unique technology platform allows their products to have higher output powers and superior beam quality at a lower input power cost than can be achieved by any other competing technology.
    PRECITEC cutting head - with Auto focus adjustment which provides the best cutting performance offering high speed processing and excellent cut edge quality. Distance to the work piece remains constant via the use of a capacitive sensing system. Fast exact drift-free distance measurement is achieved at any operating temperature even at high acceleration rates.
    Beckhoff CNC System – The Beckhoff CNC system incorporates a multi touch 19” colour operator panel which allows for ease of use. High-speed control technology of the AX5000 drives support fast and highly dynamic positioning tasks. The drives utilize the latest high speed EtherCAT as a high-performance communication system providing performance beyond expectations
    Technology cycles – Technology cycles make a significant difference in laser processing with these cycles you will achieve higher speed and cutting quality
    Automatic Nozzle Cleaning and calibration
    Sheet Edge Detection
    Auto parameter selection based on material
    Piercing cycles
    Auto capacitance height following
    Automatic Gas selection
    Auto Retract function in case of collision


    Specifications:
    Order Code: L7851
    Model: BLE PRO1530
    Laser Power (Type): 3000W (3kW)
    Cutting Table Capacity (mm): 3050 x 1525
    Mild Steel Cutting Capacity (mm): 20
    Stainless Steel Cutting Capacity (mm): 10
    Aluminium Cutting Capacity (mm): 8
    Maximum Cutting Capacity - Brass (mm): 6
    Laser (Type): IPG Photonics
    CNC Control Unit (Type): Beckhoff CNC
    Cutting Head (Type): Precitec ( Automatic Focus )
    CNC Motion System (Type): Beckhoff CNC Servo System
    Nesting Software (Type): LANTEK Expert Cut (Optional)
    X Axis (mm): 3000
    Y Axis (mm): 1500
    Z Axis (mm): 150
    Rapid Traverse ( X and Y axis ) (m/min.): 110
    Vector Speed (m/min.): 130
    Acceleration (G / m/s2): 1.2 / 12
    Absolute Positioning Accuracy (mm): ±0.08
    Feed Rate - Programmable Up To (m/min.): 50
    Repeatability (mm): ±0.03
    Focal Length (mm): 150
    Transfer Table - Motorised (mm): Automatic Exchange
    Max. Load Capacity Per Table (kg): 1000
    Automatic Nozzle Cleaning & Calibration: Standard
    Laser Wave Length (nm): 1064
    Positioning (Type): Laser Indicator
    Drawing File (Type): DXF
    Drawing File (Type): ~
    Nett Weight (kg): 10000
