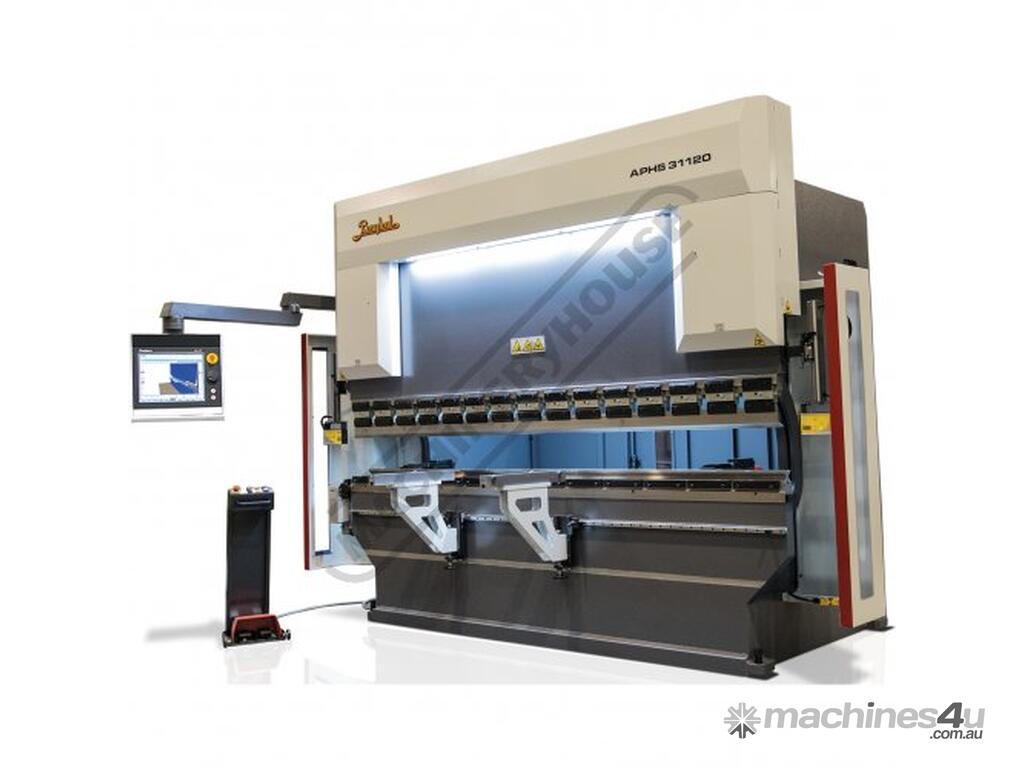

APHS-31120 Hydraulic CNC Pressbrake 120T x 3100mm, 5 Axis, Delem DA69T Touch Screen Control Includes

NSW,QLD,VIC,WA - Delivers Nationally

APHS-31120 Hydraulic CNC Pressbrake 120T x 3100mm, 5 Axis, Delem DA69T Touch Screen Control Includes :      $106,950 AUD ($117,645 Inc. GST)

  • Specifications
    Type of Sale:
    In Stock
    Not specified
    Sellers stock ID:

    BAYKAL APHS-31120 Hydraulic CNC Pressbrake 120T x 3100mm, 5 Axis, Delem DA69T Touch Screen Control Includes Programmable X, Y1, Y2, V & R-Axis. CNC Table Crowning & Laser Guarding System
    Order Code: S884F


    The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of
    today’s press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.

    The touch screen gives access to the proven Delem user-interface and enables direct navigation between programming
    and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.

    The DA-69T offers 2D as well as 3D programming that includes automatic
    bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

    Highly effective control algorithms optimise the machine cycle and
    minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever.

    The OEM-panel located above the screen, reserved for machine functions and OEMapplication switches, is integrated in the design and can be used depending the required application.

    3D and 2D graphical touch screen programming mode
    3D visualisation in simulation and production
    17" high resolution colour TFT
    Full Windows application suite
    Delem Modusys compatibility (module scalability and adaptivity)
    USB, peripheral interfacing
    Open system architecture
    Sensor bending & correction interface

    Baykal machine frames consist of a monolithic structure with hot rolled steel sheets of Fe 520 welded together. The two housings (shoulders) are obtained from the same sheet to ensure the same elasticity under stress. The ram and table are also obtained from Fe 520 steel sheets and are opportunely dimensioned to avoid deflection
    The hydraulic cylinders are manufactured from high resistance steel incorporating chromium plated & ground rods. Completed with lapped pistons to ensure longevity of the hydraulic seals
    The hydraulic unit is made by major companies in the field. It consists of electronically controlled proportional valves with independent closed loop control of the two cylinders.
    5 CNC Controlled Axis (Y1 Y2 X R V) as standard. Multi Axis available
    Full electronic Synchronisation with proportional valve technology.
    German manufactured AKAS Laser Guarding System mounted at each end of machine ensuring correct interfacing and operator safety whilst in operation. Laser-safe is designed so each guard will slide up or down to allow for many different types and sizes of tooling enabling safety at the appropriate points as required by the Australian standards. Manual height adjustment with scales and lock for easy positioning.
    Sliding steel fabricated front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required width and height. This function is achieved by the precision linear guides mounted on the front apron parallel to the tooling length. This design can also be adjusted vertically to support material with return bends.
    Ram positions (Left & Right) are obtained from independent linear encoders whilst monitoring and adjusting proportional valves. This produces a double closed loop system with guaranteed beam positioning of +/- 0.01mm (Y1 and Y2 Axis)
    Electronic control of bending parallelism is via the Delem DA-69T CNC Control
    Accuracy is further ensured by mounting the linear encoders on a C-frame connected directly to the Bed rather than the side frames. This ensures that deflection of the side frames and uneven loads have no effect on Beam position.
    CNC Controlled Back-gauge:- X-Axis stroke 750mm with DC motor mounted on hardened and machined guides translation via spherical recirculating Ball screws
    Delem DA-69T CNC Control fully programmable with 3D & 2D graphics offline software included
    Precision linear scale measurement : HEIDENHAIN or GIVI MISURE
    Y1-Y2 - X-R CNC auto crowning table - controlled stroke axes
    CNC controlled hardened ballscrew backgauge with X-axis
    X axis range = 750mm speed = 350 mm/s max.
    2 micrometric backgauge finger stops with lateral adjustment
    Front support arms fully adjustable mounted on linear rails x 2 off easy positioning over the complete working length of the machine
    Quality Siemens Electric control switch Gear is used
    Pendant control panel centralising all Press-Brake Functions
    Foot Pedal Control Emergency stop buttons
    "X" axes stroke 750 mm
    "R" axes stroke 160 mm
    2 micro adjustable fingers with 2D stops sliding all long the bar
    Hardening on fingers
    All movements on ball screws and ball guides
    AC servo brushless motors
    "X" axis speed of 350 mm/sec
    "R" axis speed 240 mm/sec
    Mechanical accuracy 0.1 mm
    Hydraulics: Hoerbiger & Parker (German & USA)
    Electrics: Siemens or Telemecanique (German or French)
    Scales: Misure or Heidenhain (Italian or Dutch)
    Tooling: Technostamp (Italian)
    Control: Delem DA-69T
    Mild steel capacity is rated on hot rolled material with 250MPA

    - Delem DA-69T 3D & 2D Graphical CNC Control
    - Offline graphical 3D software
    - Y1-Y2 cylinder axis
    - X - R Backguage
    - V - table NC auto crowning
    - Quick release top tool clamping system
    - AKAS Safety laser front guarding system
    - Mechanical crowning on top intermediate clamps

    MODEL: APHS-31120
    Control Unit (Type): DELEM DA69T CNC
    Safety Guarding System (Type): Laser System
    Nominal Pressure - Tonnage (Ton): 120
    Nominal Pressure - Kilonewtons (kN): 1200
    Machine Axis (No.): 5
    Length of Work Table (mm): 3100
    Distance Between Columns (mm): 2550
    Maximum Open Height (mm): 540
    Ballscrew Backgauge Travel (mm): 750
    Leadscrew Backgauge Travel: ~
    Table Bed Crowning System (Type): CNC Controlled System
    Throat Depth (mm): 410
    Ram Stroke (mm): 260
    Motor Power (kW / hp): 11 / 15
    Motor Voltage (V): 415
    Floor Space Requirements (L x W x H) (mm): ~
    Shipping Dimensions (L x W x H) (cm): 410 x 159 x 287
    Nett Weight (kg): 8400
