AL-336D DELUXE Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Spee

NSW,QLD,VIC,WA - Delivers Nationally

AL-336D DELUXE Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Spee :      $6,190 AUD ($6,809 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Model:
    AL-336D DELUXE
    Lathe Features:
    Gap bed
    Distance between Centres(mm):
    900
    Sellers stock ID:
    L682D
    Description

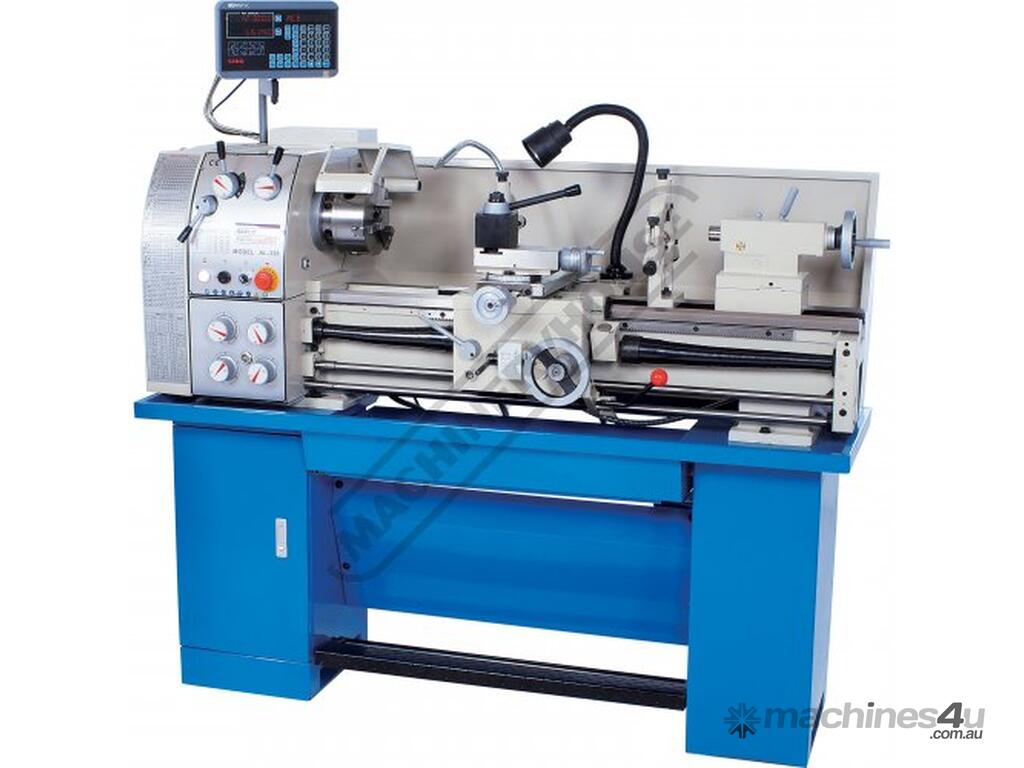

    HAFCO METALMASTER AL-336D DELUXE Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Speeds 65 ~ 1810rpm, Includes Digital Readout System, Quick Change Toolpost, Leadscrew Covers, Foot Brake & Cabinet Stand
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: L682D

    The AL-336D deluxe high quality centre lathe with a turning capacity of Ø300 x 900mm is well known in the industry for its metal turning capabilities & is suitable for the model engineer or general maintenance workshops.

    Featuring a 2-Axis digital readout system for radius & longitudinal measurements (X & Y-Axis), the DRO counter is mounted above the headstock in a user friendly location allowing you to achieve precision work every time. The induction hardened vee bedways are precision ground that allows the saddle to smoothly slide over it, full gear driven spindle speeds ranging from 65 - 1810rpm are selectable via the gear selector levers that are accessible from the front of headstock for your convenience & certainly makes this lathe package well sort after.

    The 2hp single phase 240V motor is ample power to drive the 3 & 4 jaw chucks, auto feed & screw cutting thread system and the adjustable taper roller spindle bearings ensures accuracy & smooth operation even when under cutting load. A great range of cross, longitudinal feed speeds & metric & imperial screw cutting threads are easy accessible & selected via the separate gearbox located underneath the headstock for your convenience.

    Supplied with a large range of standard accessories including a quick change tool post with 4 tool holders, 150mm 3 jaw self centring chuck, 200mm 4 jaw independent chuck with D1-4 camlock for quick change over, face plate, spindle safety foot brake, chuck guard with safety interlock switch, guarded leadscrew cover, thread chasing dial, rear splash guard, coolant pump system, work light, fixed & traveling steadies & that rounds up most of the great features on this fantastic centre lathe. The floor stand is equipped with a slide out swarf tray that makes it very easy to clean down and remove your waste material swarf.

    Features:
    2 Axis digital readout
    Quick change toolpost with 4 holders
    Gear drive headstock for quick change of spindle speeds
    Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting
    Concertina leadscrew cover
    Slide out swarf tray from front of machine
    Low voltage work light
    Foot operated spindle brake with safety cut out switch
    Slide out front swarf tray for easy cleaning
    Change gears for metric and imperial thread cutting
    Oil sight glass for head stock and gearbox
    Adjustable taper roller bearings support the spindle
    18 spindle speeds from 65 to 1810rpm
    Inching button is incorporated on the control panel for convenient spindle speed selection
    Enclosed quick action gearbox for thread cutting and auto feeding
    Powered longitudinal and cross feeds
    D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
    Removable gap bed-way for larger diameter jobs
    Dual calibrated dials (except for saddle hand-wheel)
    Chuck & change gear guards are fitted with micro switches

    Includes:
    - 2 Axis digital readout system
    - Concertina leadscrew cover
    - Quick change toolpost with 4 holders
    - Slide out front swarf tray
    - 3-jaw chuck with reverse jaws
    - 4-jaw chuck
    - Face plate
    - Fixed steady
    - Travelling steady
    - Coolant system
    - Change gears
    - Dead centres
    - Thread-chasing dial
    - Safety chuck guard
    - Work light
    - Stand
    - Foot brake
    - Rear splash guard & slide out swarf tray
    - Tool box
    - Instruction booklet



    Specifications:
    ORDER CODE: L682D
    MODEL: AL-336D-DELUXE
    Swing Over Bed (mm): 300
    Distance Between Centres (mm): 900
    Spindle Bore (mm): 38
    Swing In Gap (mm): 450
    Swing Over Cross-slide (mm): 180
    Digital Readout System Fitted: Yes
    Quick Change Toolpost Fitted: Yes
    Leadscrew Covers Fitted: Yes
    Taper Turning Attachment: ~
    Coolant System: Yes
    Tool Height To Suit (mm): 12
    Centre Height (mm): 150
    Spindle Nose Size or Type: D1-4 Camlock
    Bed Width (mm): 180
    Headstock Spindle Taper (MT): 5
    Tailstock Taper (MT): 3
    Cross Slide Travel (mm): 170
    Compound Slide Travel (mm): 75
    Leadscrew Type: Imperial
    Metric Cross Feed (X-Axis) (mm/rev): ~
    Imperial Cross Feed (X-Axis) (inch/rev): 0.009 - 0.236
    Metric Longitudinal Feed (Z-Axis) (mm/rev): ~
    Imperial Longitudinal Feed (Z-Axis) (inch/rev): 0.04 - 1.2236
    Metric Thread Steps & Pitch (No. / mm): 32 (0.4 - 7)
    Imperial Thread Steps & TPI (No. / TPI): 36 (4 - 60)
    3 Jaw Chuck Diameter (mm): 160
    4 Jaw Chuck Diameter (mm): 200
    Spindle Steps / Speeds (No. / rpm): 18 (65 - 1810)
    Motor Power (kW / hp): 1.5 / 2
    Voltage / Amperage (V / amp): 240 / 10
    Shipping Dimensions (L x W x H) (cm): 168 x 76 x 145
    Nett Weight (kg): 595
