AL-1000C Centre Lathe Ø356 x 1000mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout

NSW,QLD,VIC,WA - Delivers Nationally

AL-1000C Centre Lathe Ø356 x 1000mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout :      $10,690 AUD ($11,759 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Hafco metalmaster
    Model:
    AL-1000C
    Lathe Features:
    Gap bed
    Distance between Centres(mm):
    1000
    Sellers stock ID:
    L240D
    Description

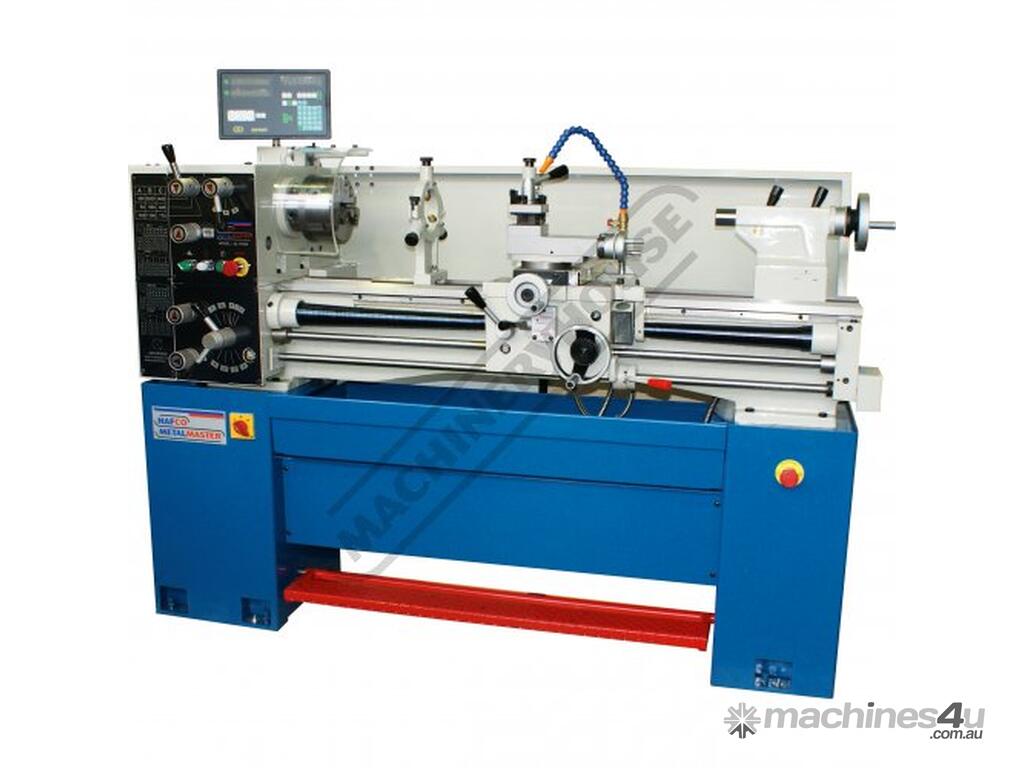

    HAFCO METALMASTER AL-1000C Centre Lathe Ø356 x 1000mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout System
    CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
    WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
    Order Code: L240D

    Manufactured in Taiwan

    Tool room quality precision lathe and have been sold for over 20 years

    Features:
    2 Axis digital readout system
    Gear drive headstock for quick change of spindle speeds
    Stand increasing rigidity and reducing vibration
    Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting
    Foot operated spindle brake with safety cut out switch
    Slide out front swarf tray for easy cleaning
    Change gears for metric and imperial thread cutting
    Oil sight glass for head stock and gearbox
    Adjustable taper roller bearings support the spindle
    Overload clutch mechanism on auto power feed
    Overload protection on drive motor and coolant system
    2hp 240V motor 9-speed (82 - 2000rpm)
    Inching button is incorporated on the control panel for convenient spindle speed selection
    Enclosed quick action gearbox for thread cutting and auto feeding
    Powered longitudinal and cross feeds
    D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
    Removable gap bed-way for larger diameter jobs
    Dual calibrated dials (except for saddle hand wheel)
    Coolant system with flexible hose
    Slide out swarf tray

    Includes:
    - 2 Axis digital readout system
    - Concertina leadscrew cover
    - Slide out front swarf tray
    - 160mm 3-jaw chuck with reverse jaws
    - 200mm 4-jaw chuck
    - Face plate
    - Fixed steady
    - Travelling steady
    - Change gears
    - Dead centres
    - Thread-chasing dial
    - Safety chuck guard
    - Stand
    - Foot brake
    - Rear splash guard & swarf tray
    - Tool box
    - Instruction booklet



    Specifications:
    ORDER CODE: L240D
    MODEL: AL-1000C
    Swing Over Bed (mm): 356
    Distance Between Centres (mm): 1000
    Spindle Bore (mm): 40
    Swing In Gap (mm): 516
    Swing Over Cross-slide (mm): 225
    Digital Readout System Fitted: Yes
    Quick Change Toolpost Fitted: Optional
    Leadscrew Covers Fitted: Yes
    Taper Turning Attachment: Optional
    Coolant System: Yes
    Tool Height To Suit (mm): 16
    Centre Height (mm): 178
    Spindle Nose Size or Type: D1-4 Camlock
    Bed Width (mm): 190
    Headstock Spindle Taper (MT): 5
    Tailstock Taper (MT): 3
    Cross Slide Travel (mm): 175
    Compound Slide Travel (mm): 100
    Leadscrew Type: Imperial
    Metric Cross Feed (X-Axis) (mm/rev): ~
    Imperial Cross Feed (X-Axis) (inch/rev): 0.0008 - 0.15
    Metric Longitudinal Feed (Z-Axis) (mm/rev): ~
    Imperial Longitudinal Feed (Z-Axis) (inch/rev): 0.0016 - 0.30
    Metric Thread Steps & Pitch (No. / mm): 30 (0.4 - 7.0)
    Imperial Thread Steps & TPI (No. / TPI): 32 (4 - 56)
    3 Jaw Chuck Diameter (mm): 160
    4 Jaw Chuck Diameter (mm): 200
    Spindle Steps / Speeds (No. / rpm): 9 (82 - 2000)
    Motor Power (kW / hp): 1.5 / 2
    Voltage / Amperage (V / amp): 240 / 15
    Shipping Dimensions (L x W x H) (cm): 185 x 76 x 150
    Nett Weight (kg): 700
